|Place of Origin:||China|
|Minimum Order Quantity:||1PCS|
|Price:||Please inquiry email@example.com|
|Packaging Details:||Neutrial packing|
|Type:||Multi-Mode Fiber (MMF)||Wavelength:||1310nm|
|Optical Budget:||6.2dB||Compatibility:||Multi-Vendor MSA|
Hot Pluggable, Duplex LC, 1310nm, FP LD, Multi modee
|Media Type:||Multi-Mode Fiber (MMF)|
|TX Wavelength:||1310 nm.|
|RX Wavelenght:||1310 nm.|
|Minimum Optical Budget:||6.2 dB|
|Supported Data Rate:||1.24-11.32Gbps|
10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps),
10G Fiber Channel (10.52 Gbps), 8G Fiber Channel
(8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber
Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps),
STM-16 (2.488 Gbps), STM-64 (9.95Gbps), ODU0
1.244Gbps), ODU1 (2.498Gbps), ODU2 (10.037Gbps),
ODU2e (10.399Gbps), OTU1 (2.66Gbps), OTU2
(10.70Gbps), OTU1f (11.27Gbps), OTU2f (11.32Gbps),
|Temperature Range:||Standard 0°-70°C|
|Tx Wavelength Bandwidth:||100 nm (1260-1360 nm)|
|Rx Wavelength Bandwidth:||100 nm (1260-1360 nm)|
|Minimum Transmitting Power:||-8.2 dB|
|Maximum Transmitting Power:||0 dB|
|Receiver Sensitivity:||-14.4 dBm|
|Receiver Overload:||0.5 dBm|
|Transmitter Type:||DFB Laser|
|Receiver Type:||PIN photodiode|
|CDR (Clock and Data Recovery) chip||Supported|
|Power:||+3.3V single power supply|
|Chipset:||MAXIM, MINDSPEED, SEMTECH|
CE, Class 1 FDA and IEC60825-1 Laser Safety

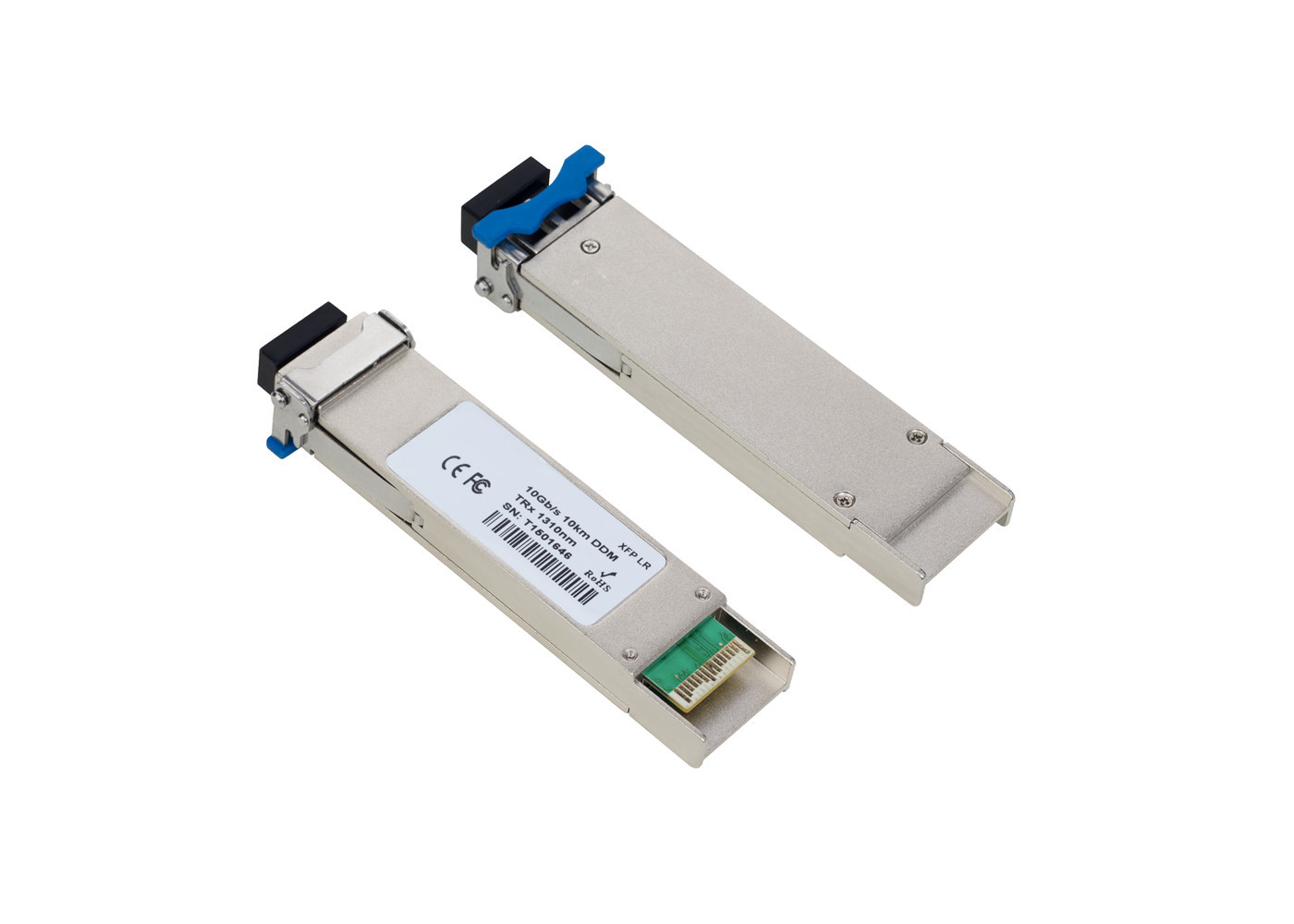

10G-XFP-2 is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 6.2 dB, with in most cases is enough to reach about 2 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 10G-XFP-2 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
