|Place of Origin:||China|
|Minimum Order Quantity:||1pc|
|Price:||Please inquiry firstname.lastname@example.org|
|Packaging Details:||Neutrial packing|
|Delivery Time:||3-7 working days|
|Payment Terms:||100% TT in advance|
|Optical Budget:||23dB||Compatibility:||Multi-Vendor MSA|

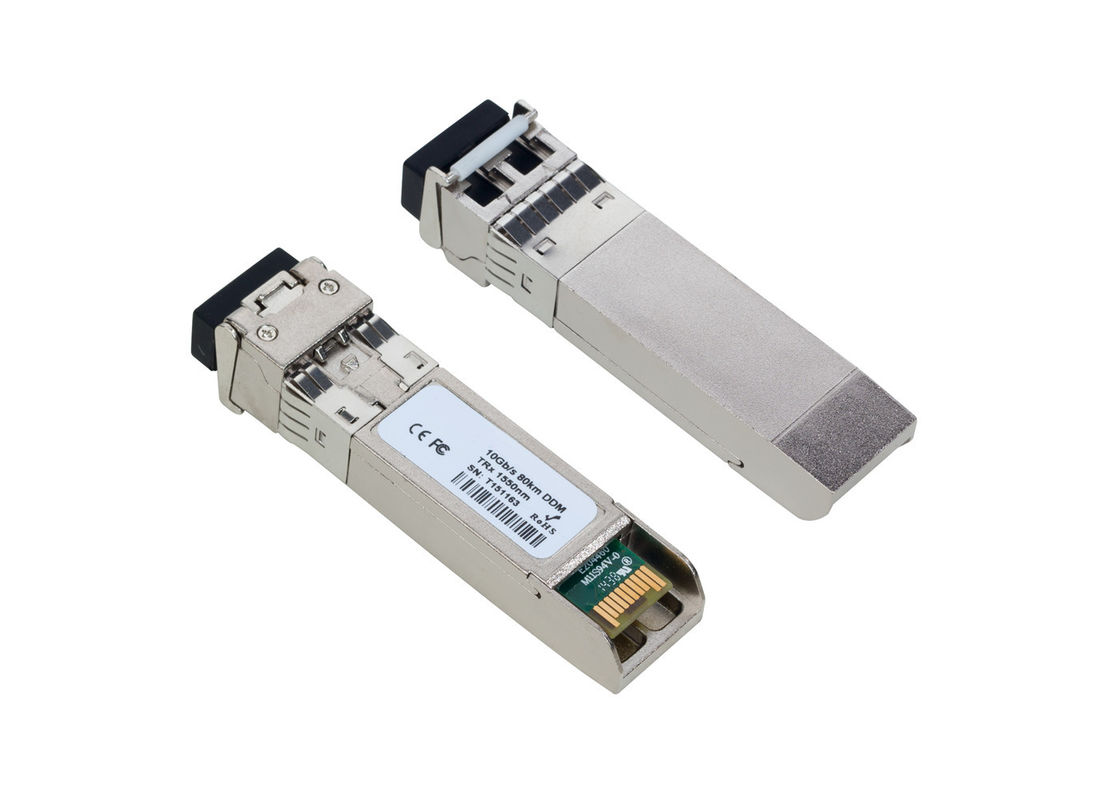

10G SFP+ DWDM CH44 1542.14nm 80km DDM SFP+ Transceiver
Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM EML, Single mode
|Media Type:||Single-Mode Fiber (SMF)|
|TX Wavelength:||Ch. 44 (1542.14nm)|
|RX Wavelenght:||ITU-T DWDM Grid 100 GHz C-Band|
|Minimum Optical Budget:||23 dB|
|Supported Data Rate:||9.95-11.32Gbps|
10G Ethernet (10.31Gbps), STM-64 (9.95Gbps),
ODU2 (10.037Gbps), ODU2e (10.399Gbps),
OTU2 (10.70Gbps), OTU1f (11.27Gbps),
OTU2f (11.32Gbps), OTU1e (11.049Gbps),
|Temperature Range:||Standard 0°-70°C|
|Tx Wavelength Bandwidth:||100GHz (0.8nm)|
|Rx Wavelength Bandwidth:||1260 – 1620 nm|
|Minimum Transmitting Power:||0 dB|
|Maximum Transmitting Power:||5 dB|
|Receiver Sensitivity:||-23 dBm|
|Receiver Overload:||-6 dBm|
|Transmitter Type:||EML Laser|
|Receiver Type:||APD Photodiode|
|Power:||+3.3V single power supply|
|Chipset:||MAXIM, MINDSPEED, SEMTECH|
CE, Class 1 FDA and IEC60825-1 Laser Safety
DWDM-10G-SFP-80-44 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength CH44 (1542.14nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. DWDM-10G-SFP-80-44 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
