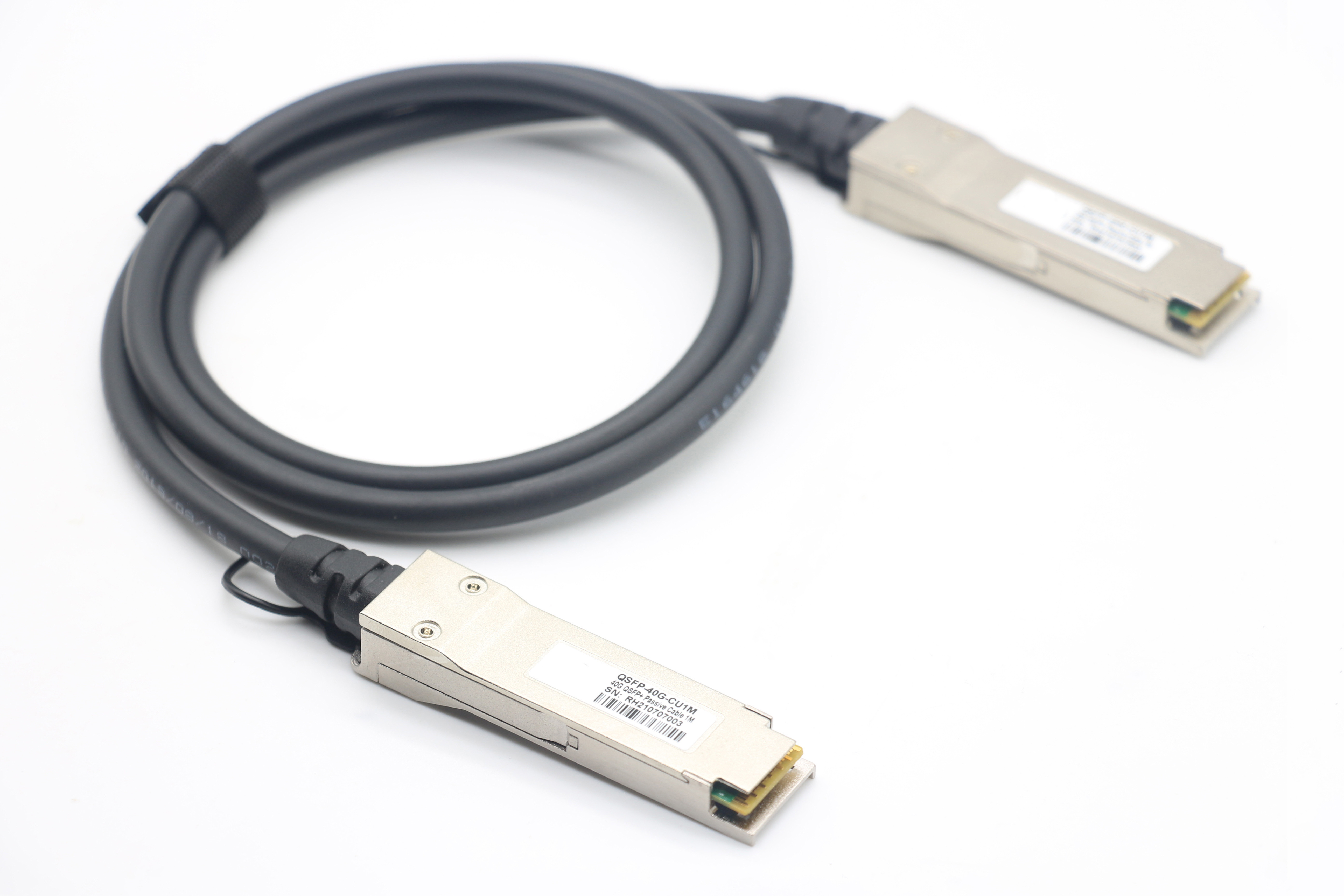

40G QSFP+ Direct Attach Copper Cable Transceiver Copper Twinax 3M 30AWG

40G QSFP+ Direct Attach Copper Cable Transceiver Copper Twinax 3M 30AWG

    • 40G QSFP+ Direct Attach Copper Cable Transceiver Copper Twinax 3M  30AWG
    • 40G QSFP+ Direct Attach Copper Cable Transceiver Copper Twinax 3M  30AWG
  • 40G QSFP+ Direct Attach Copper Cable Transceiver Copper Twinax 3M  30AWG

    Product Details:

    Place of Origin: China
    Brand Name: FLYROM
    Certification: CE,ROHS
    Model Number: FY-DAC40G-CU3M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Please send inquiry to sales@flyromtech.net
    Packaging Details: Neutral Packing
    Delivery Time: 3-7 working days
    Payment Terms: T/T, L/C
    Supply Ability: 1000PCS/MONTH
    Contact Now
    Detailed Product Description
    Warranty: 3 Years Data Rate: 40G
    Certification: CE RoHS FCC Product Name: 40Gb/s QSFP+ DAC Cable
    Connector: Qsfp+ Package Compatible: QSFP+ MSA,H3C,Cisco,Juniper,Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C Etc.
    Application: Data Center,Telecommunication,Plug-and-Play Temperature: 0 To +70°C
    Length: 3m Cable Type: 30AWG




    40G QSFP+ Direct Attach Passive Copper Cable





    Optical 40G QSFP + Direct Attach Cable Transceiver FY-DAC40G-CU3M

    40G QSFP+ direct attach passive cable uses shielded high-speed differential cable, whichIt conforms to 40g Ethernet ieee802.3ba standard and sff-8436 qsfp+ standard, supports 40g transmission rate, and is also downward compatible with low rate applications. Qsfp+ passive cable is the preferred solution for 40g rate short distance application, which is widely used in data transmission between data center and cabinet or between adjacent cabinets. Its biggest characteristics are low cost, ultra-low power consumption (less than 0.1W) and high reliability.





    Features

    • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
    • Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
    • QSFP+ conforms to the Small Form Factor SFF-8436
    • 4-Channel Full-Duplex Passive Copper Cable
    • Copper link length up to 5m (passive limiting)
    • High-Density QSFP 38-PIN Connector
    • Compatible to IEEE 802.3ba and SFF-8436
    • Compatible to QSFP+ MSA
    • Power Supply :+3.3V
    • Low power consumption: 0.02 W (typ.)
    • I2C based two-wire serial interface for EEPROM
    • signature which can be customized
    • Temperature Range: 0~ 70 °C
    • Comply with RoHS 6.0





    Applications

    • 10G/40G Ethernet
    • InfiniBand 4x SDR/DDR/QDR
    • 2/4/8/10G Fibre Channel
    • Fibre Channel over Ethernet
    • SAS, Servers, Hubs, Switches, and Routers





    Competitive advantage:

    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM  Customized label
    5. Keep stock,Fast delivery





    Mechanical Dimensions



    Part Number Product Description
    FY-DAC40G-CU1M 40G QSFP+ Direct Attach Passive Cable (10GSFP+Cu), 1m, AWG:30 , 0ºC ~ +70ºC
    FY-DAC40G-CU2M 40G QSFP+ Direct Attach Passive Cable (10GSFP+Cu), 2m, AWG:30 , 0ºC ~ +70ºC
    FY-DAC40G-CU3M 40G QSFP+ Direct Attach Passive Cable (10GSFP+Cu), 3m, AWG:24 , 0ºC ~ +70ºC
    FY-DAC40G-CU5M 40G QSFP+ Direct Attach Passive Cable (10GSFP+Cu), 5m, AWG:24, 0ºC ~ +70ºC
    FY-DAC40G-CU7M 40G QSFP+ Direct Attach Passive Cable (10GSFP+Cu), 7m, AWG:24, 0ºC ~ +70ºC

    Note: You can be customized diameter and distance.





    Specification:40G QSFP+ Direct Attach Copper Cable Transceiver Copper Twinax 3M  30AWG
