| Place of Origin: | China |
| Brand Name: | FLYROM |
| Certification: | CE,ROHS |
| Model Number: | FY-DAC100G-CU5M |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Please send inquiry to sales@flyromtech.net |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000PCS/MONTH |
| Warranty: | 3 Years | Data Rate: | 100G |
|---|---|---|---|
| Certification: | CE RoHS FCC | Product Name: | 100Gb/s QSFP28 DAC Cable |
| Connector: | Qsfp28 Package | Compatible: | QSFP28 MSA,H3C,Cisco,Juniper,Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C Etc. |
| Application: | Data Center,Telecommunication,Plug-and-Play | Temperature: | 0 To +70°C |
| Length: | 5m | Cable Type: | 26AWG |

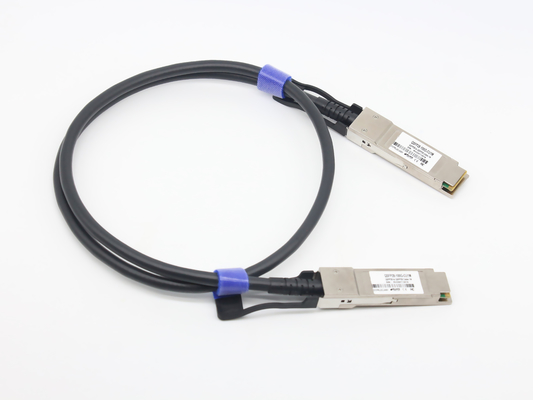

The 100G QSFP28 passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.
Features
Applications
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
Mechanical Dimensions
Order Information:
|
Part Number |
Product Description |
| FY-DAC100G-CU1M | QSFP28 Direct Attach Passive Cable (100G QSFP28 - Cu), 1m, AWG:30 , 0ºC ~ +70ºC |
| FY-DAC100G-CU2M | QSFP28 Direct Attach Passive Cable (100G QSFP28 - Cu), 2m, AWG:30 , 0ºC ~ +70ºC |
| FY-DAC100G-CU3M | QSFP28 Direct Attach Passive Cable (100G QSFP28 - Cu), 3m, AWG:30 , 0ºC ~ +70ºC |
| FY-DAC100G-CU5M | QSFP28 Direct Attach Passive Cable (100G QSFP28 - Cu), 5m, AWG:24, 0ºC ~ +70ºC |
Note: You can be customized diameter and distance.
Specification:
If any questions, please find Ms Jade
