1.25Gb/s DWDM 120km CH27 SFP Transceiver
Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM COOLED DFB&PIN, Single mode
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength: Ch. 27 (1555.75nm) / ITU-T DWDM Grid 100 GHz C-Band
- Media Type: Singe-Mode Fiber (SMF)
- Optical Budget: 32 dB
- Max. Distance: 120km
- Data Rate: 1.063-1.25Gbps
- Temperature:Standard 0°-70°C
- Duplex LC connector
- Single +3.3V Power Supply
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- 1G Fibre channel
- DWDM Networks

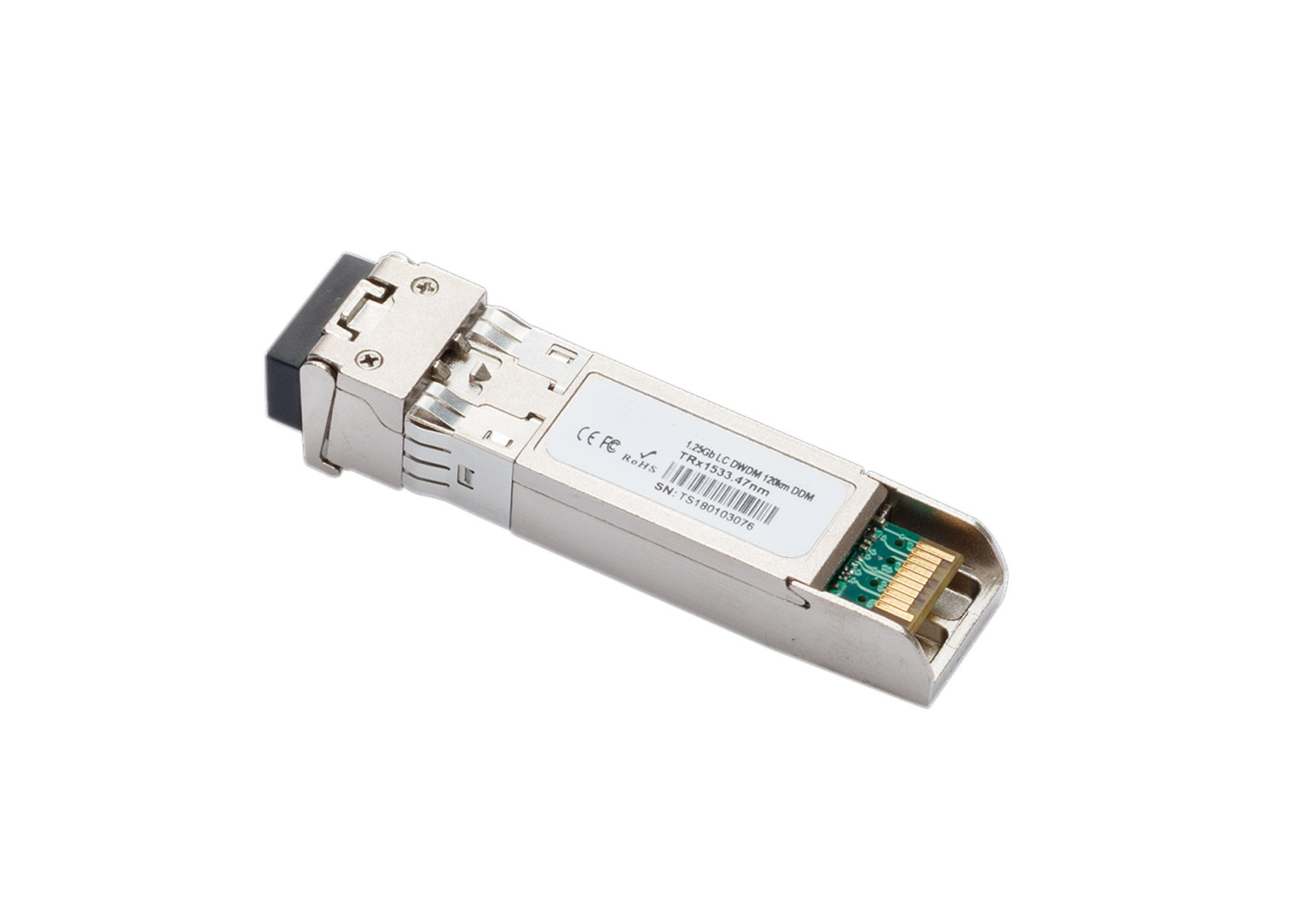

DWDM-1.25G-SFP-120-27 is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 32dB, with in most cases is enough to reach about 120 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength Ch. 27 (1555.75 nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. DWDM-1.25G-SFP-120-27 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
