10G SFP+ DWDM CH44 1542.14nm 40km DDM SFP+ Transceiver
Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM EML, Single mode
- Supports 9.95 to 11.3Gb/s bit rate
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength: CH44 (1542.14nm)/ ITU-T DWDM Grid 100 GHz C-Band
- Media Type: Single-Mode Fiber (SMF)
- Optical Budget: 14 dB
- Max. Distance: 40 km
- DWDM EML transmitter, APD photo-detector
- Duplex LC connector
- Power Supply :+3.3V
- Power consumption<1.5W
- Temperature:Standard 0°-70°C
- 10GBASE-ER/EW Ethernet
- Sonet OC-192/SDH
- 10G Fibre channel
- DWDM Networks
||Single-Mode Fiber (SMF)
||CH44 (1542.14 nm)
||ITU-T DWDM Grid 100 GHz C-Band
|Minimum Optical Budget:
|Supported Data Rate:
10G Ethernet (10.31Gbps), STM-64 (9.95Gbps), ODU2 (10.037Gbps),
ODU2e (10.399Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps),
OTU2f (11.32Gbps), OTU1e (11.049Gbps), OTU2e (11.095Gps)
|Tx Wavelength Bandwidth:
|Rx Wavelength Bandwidth:
||1260 – 1620 nm
|Minimum Transmitting Power:
|Maximum Transmitting Power:
||+3.3V single power supply
||MAXIM, MINDSPEED, SEMTECH
CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant,
RoHS, SFF-8431, SFP MSA

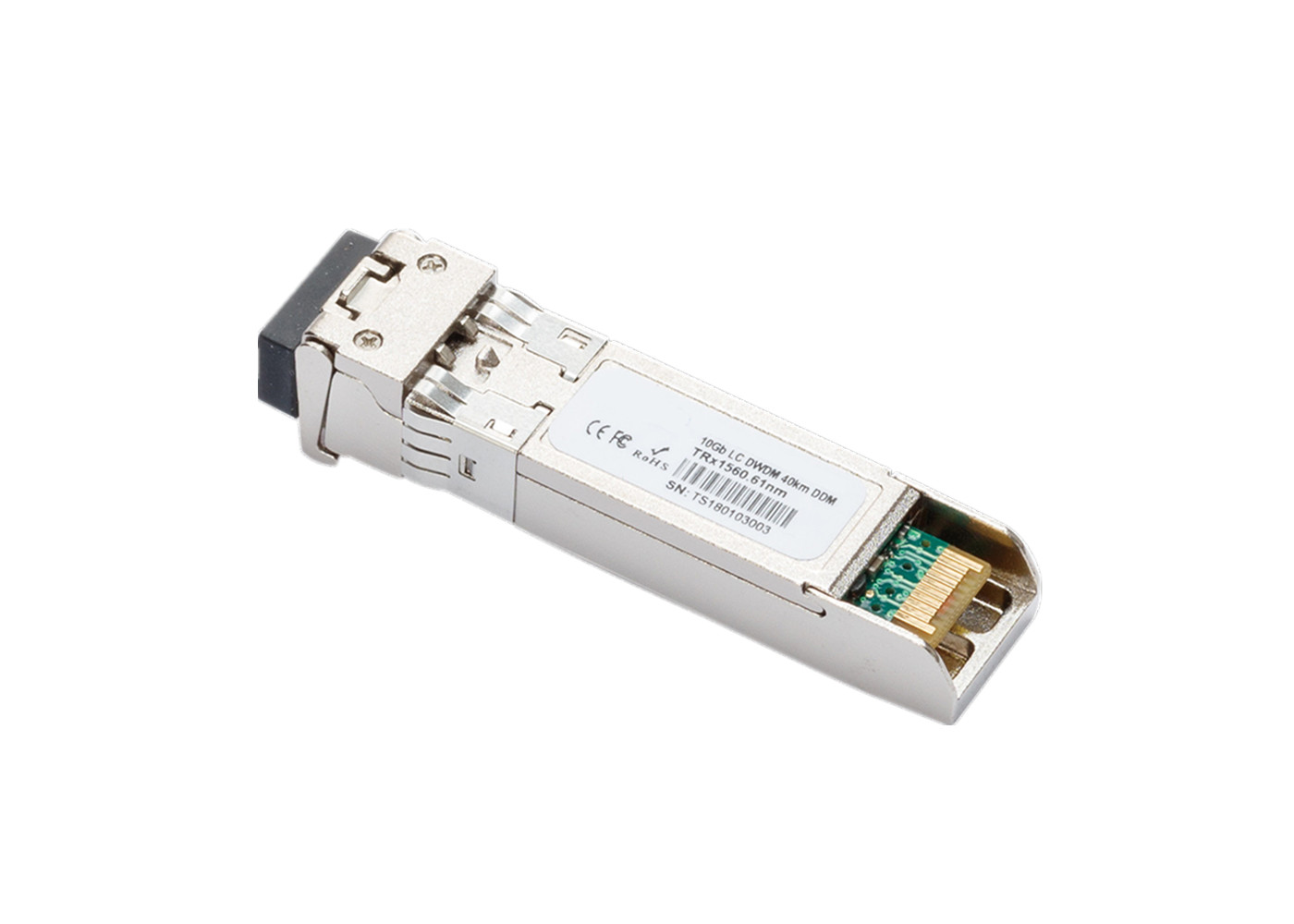

DWDM-10G-SFP-40-44 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 14 dB, with in most cases is enough to reach about 40 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength CH44 (1542.14nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. DWDM-10G-SFP-40-44 operates in Standard 0°-70°C temperature range and has Double LC interface.
