|Place of Origin:||China|
Managed Media Converter,
Fiber Media Converter,
One to One manageable Media Converter

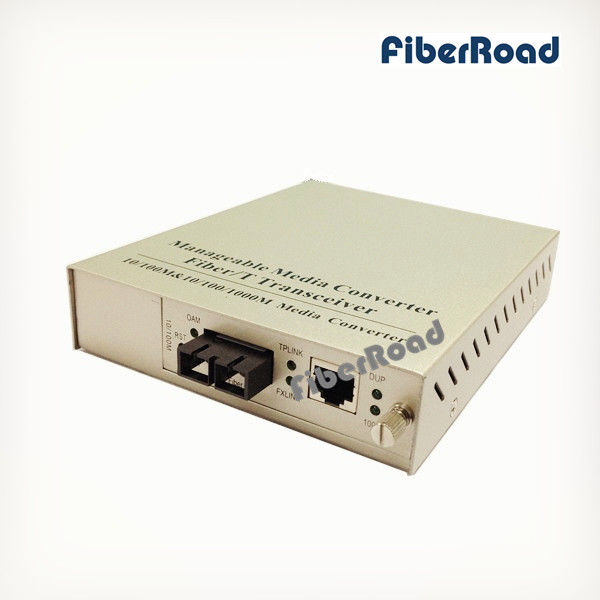

**FR-121-MMC-DF is a Managed Media Converter that converts a 100Base-TX(RJ45) to 100Base-LX(SC) via a 1310nm single-mode fiber (SMF) SC connector, which allows distance reach up to 20km.
**FR-121-MMC-DF provides a cost effective conversion from 100Base Copper to 100Base-LX fiber, while extending the network reach beyond the 100m reach limitation of copper.
FiberRoad Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
*Built-in IP-based Web Interface.
*Supporting remote and local management.
*Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode.
*Store and Forward mechanism.
*Manual IP address setting/DHCP client for IP address assignment.
*SNMP V1 / V2c monitor / private Enterprise MIB.
*Event trap and SNMP trap support.
*Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port.
*Supports Port Status / Ethernet Statistics on both TP and Fiber intertace.
*Supports Maximum frame size to 16K bytes.
*Loop detection / Broadcast / Multicast / Unicast storm control.
*Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN.
*802.1p Tag Priority / IP address priority / IP DSCP option in.
*Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies.
*TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test.
*16 TCP / UDP Filter groups.
*Password setting, IP setting and devices description setting through Planet Smart discovery utility.
*Firmware upgrade via remote Web interface.
*LED indicators for easy network diagnosing.
*Reset Button at the front panel for the factory default reset.
*Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
