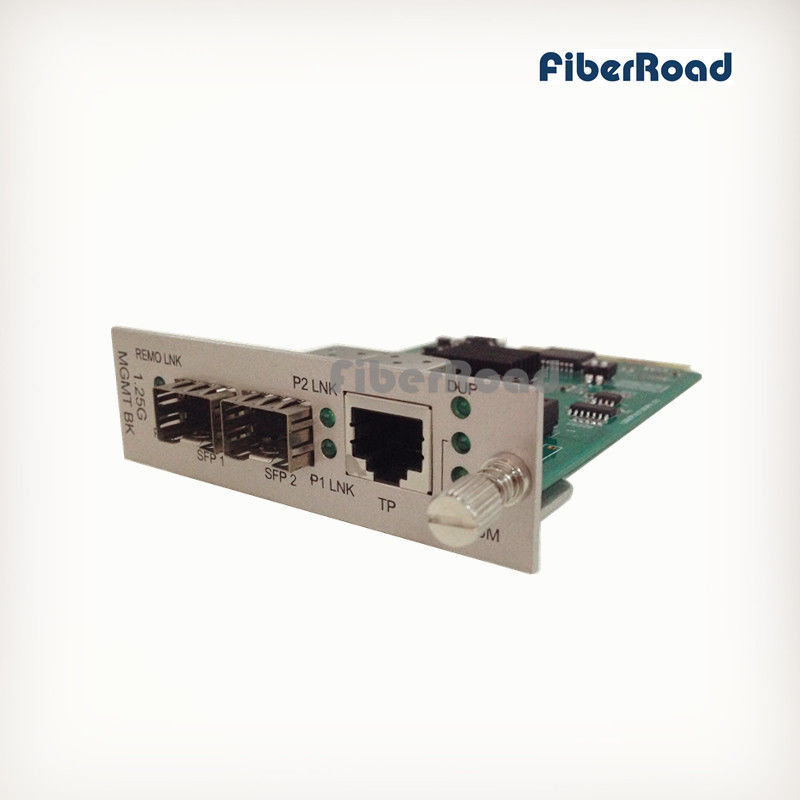

1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup

1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup

1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup

Product Details:

Place of Origin: China
Brand Name: FiberRoad
Certification: CE,ROHS
Model Number: FR600-501-TF1

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Please send inquiry to jojo@fiberroad.com.cn
Packaging Details: Neutral Packing
Delivery Time: 3-7 days
Payment Terms: T/T in advance
Supply Ability: 10000pcs/Month
Contact Now
Detailed Product Description

1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup

MAIN APPLICATIONS

  •  This is 1.25 Gb/s optical transmission equipment ,can realize the optical line 1 + 1 redundancy protection in point-to-point mode, it can provide Optical Port automatic protection switching. To realized 1* 1000M  or  1*100M  Ethernet data  to 2 Port 1.25 Gb/s optical  Port for long distance transmission.
  • The equipment support 2 Fx port with a hot-swappable SFP slot;
  • This device uses a centralized management platform to monitor and manage the device,  it is very convenient. Also supports SNMP.
  • This equipment is high integration, low power consumption, stable performance, easy installation, can be widely used in telecommunications, electricity and financial industries.

1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup

KEY Function

  • Support FX port with 1+1 automatic protection switching,switching time will less than 30ms.
  • Rack-Mountable
  • Supports hot plugging.
  • Support 16-slot Rack management.
  • Powerful Network Management function (Web, SNMP, Console)
  • Full State Led display
  • Easy installation.
  • Fiber Port Supports functions monitoring for SFP modules
  • Fiber Port Supports Standard SFP modules port.
  • Ethernet Port Supports Ethernet frame length: 64~9600 bytes.
  • Ethernet Port Complies with IEEE802.3ah.
  • Ethernet port Supporting 1000/100M, full duplex autosensing.
  • Ethernet port support MDI/MDIX



Technical Information

Performance Data

Technical Indexes

Equipment function

Media Converter

Transmission Speed

1.25Gb/s

Access Type

1.25G LAN/ 1.25G WAN

Interface Type

Type: 1*ETHERNET/SFP to 2*SFP (backup protect)

Transmission Distance

SFP module: Up to 80Km

Network management

information:

Card type information

SFP fiber module detection

SFP fiber module DMI function (Temperature ,Voltage , Optical power)

Link status detector

Remote card's status monitor (only in pairs)

Power requirement

Rack-mountable : AC 85 ~ 220V OR DC -48V

Standalone: AC 220V OR DC -48V

Power consumption: ≤ 3.5 W

Work Environment

Operating Temp: 0~ 50 ℃

Storage Temp: -10~ 70 ℃

Humidity: 5%~90% ( non-condensing )

 Dimension

Card: 11.5mm (W) × 78mm (D)× 26mm (H)/ 81.4GS (NET WEIGHT)

Standalone:156mm(W)× 128mm(D)× 32mm (H)/0.85KGS (NET WEIGHT)



Note: Specifications subject to change without notice



Remote Standalone Unit:



1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup



Application Link

It support point to point application, refer as below:

1.      Instruction for TX to FX backup card



1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup



        2.  Instruction for FX to FX backup card

1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup



Ordering Information

Part Number

Product Description

FR600-501-TF

 TX to FX backup , 1000M 1-Port TP to 2-Port SFP Slot Media Converter

FR600-501-FF

    FX to FX backup , 1000M 1-Port SFP to 2-Port SFP Slot Media Converter



1000M TP to 2-Port SFP 1+1 Protection Media Converter TX to FX backup
