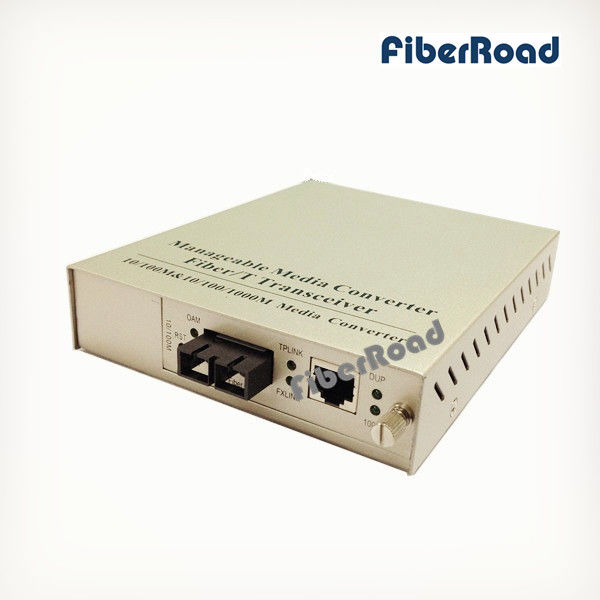

**FR-121-MMC-1 is a Managed Media Converter that converts a 100Base-TX(RJ45) to 100Base-BXD(SC) via a 1550nm/1310nm bi-directional (BiDi) single-mode fiber (SMF) SC connector, which allows distance reach up to 20km.
**FR-121-MMC-1 provides a cost effective conversion from 100Base Copper to 100Base-BXD fiber, while extending the network reach beyond the 100m reach limitation of copper.
**FiberRoad Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Key Features: *Built-in IP-based Web Interface. *Supporting remote and local management. *Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode. *Store and Forward mechanism. *Manual IP address setting/DHCP client for IP address assignment. *SNMP V1 / V2c monitor / private Enterprise MIB. *Event trap and SNMP trap support. *Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port. *Supports Port Status / Ethernet Statistics on both TP and Fiber intertace. *Supports Maximum frame size to 16K bytes. *Loop detection / Broadcast / Multicast / Unicast storm control. *Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN. *802.1p Tag Priority / IP address priority / IP DSCP option in. *Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies. *TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test. *16 TCP / UDP Filter groups. *Password setting, IP setting and devices description setting through Planet Smart discovery utility. *Firmware upgrade via remote Web interface. *LED indicators for easy network diagnosing. *Reset Button at the front panel for the factory default reset. *Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
