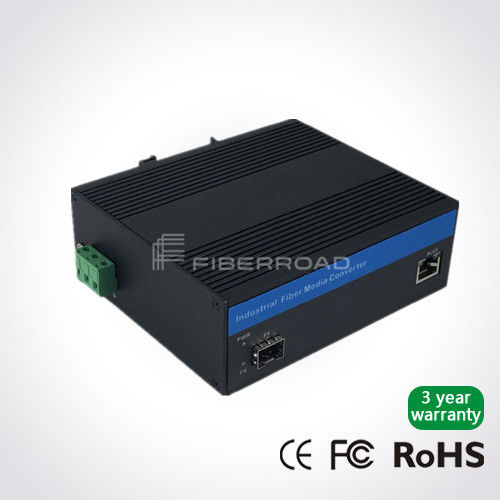

Gigabit IEEE802.3af or at Industrial Media Converter with POE

Gigabit IEEE802.3af or at Industrial Media Converter with POE

    • Gigabit  IEEE802.3af or at Industrial Media Converter with POE
    • Gigabit  IEEE802.3af or at Industrial Media Converter with POE
    • Gigabit  IEEE802.3af or at Industrial Media Converter with POE
  • Gigabit  IEEE802.3af or at Industrial Media Converter with POE

    Product Details:

    Place of Origin: China
    Brand Name: FiberRoad
    Certification: CE/ROHS
    Model Number: FR-IMC-P1GF1GT-SFP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Please send inquiry to jojo@fiberroad.com.cn
    Packaging Details: Neutrial packing
    Delivery Time: 3-7 working days
    Payment Terms: T/T, L/C
    Supply Ability: 1000PCS/MONTH
    Contact Now
    Detailed Product Description
    Standard: IEEE802.3AF/AT,15.4W POE Input Voltage: 48V (max 53V)
    Copper Port: 1 X 10/100/1000Mbps Auto-sensing RJ45 Port Fiber Port: 1 X 1000Mbps SFP Fiber Port
    Safety Class: IP30 Protection Application: IP Surveillance

    Gigabit  IEEE802.3af or at Industrial Media Converter with POE



    Key Features

    • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
    • IEEE 802.3af power on to 1  RJ45 port
    • 1 x 10/100/1000Mbps Auto-sensing RJ45 port
    • 1 x 1000Mbps SFP fiber port
    • 4KV Ethernet surge protection, adapt to a harsh outdoor environment
    • Support Auto MDI/MDIX
    • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
    • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
    • Max power to15.4W under af standard, 30W under at standard to each PoE port
    • Detect the PoE models of electrical equipments.
    • A store-and-forward switching mechanism
    • Operating environment temperature:-40 ° ~85 ° c
    • Duplex, multimode for 2km
    Gigabit  IEEE802.3af or at Industrial Media Converter with POE

    Description:

    FR-IMC-P1GF1GT-SFP is the 10/100/1000 Mbps industrial POE fiber media converter, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP30 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



    Specification:

    Product Name

    10/100/1000Mbps Industrial  POE Fiber Media Converter (1F+1TP)

    Model No.

    FR-IMC-P1GF1GT-SFP

    Port

    1 x 1000Mpbs SFP port

    MM:1310nm,2Km

    1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

    Switching features

    Transmission mode:storage and forward

    System bandwidth:40Gbps (non-traffic jam)

    Network media

    10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

    100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

    SFP port,transmission distance: 2KM

    LEDs

    Power, network, fiber

    Power supply

    Input voltage: DC 12-36V

    No-load power consumption: 5W

    Reverse polarity protection: support

    POE power supply input voltage: 48V (max 53V),

    Single PoE power supply output power: 15.4W (port 1)

    (802.3at standards required special instructions)

    Environment

    Working temperature:-40°~ 85°C

    Storage temperature:-40°~ 85°C

    Working humidity:10%~90%,non-condensing

    Storage humidity:10%~95%,non-condensing

    Industry Standards

    EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

    EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

    Traffic Control:NEMA-TS2

    Vibration:IEC 60068-2-6

    Freefall:IEC 60068-2-32

    Shock:IEC 60068-2-27

    Rail Traffic:EN 50121-4

    Safety

    CE Mark ,commercial

    CE/LVD EN60950

    Mechanical information

    Shell:Corrugated metal shell

    Safety class:IP30

    Dimension:118 x 138.5 x48mm

    Mounting method:Din-rail mounting

    Warranty

    Replacement within 1 year; 5 years repairing





    Ordering Information:

    P/N Description
    FR-IMC-P1F1T-SFP Industrial Grade 10/100Base-TX to 100Base-FX POE Media Converter
    FR-IMC-P1GF1GT-SFP Industrial Grade 10/100/1000Base-TX to 1000Base-FX POE Media Converter




    If any questions, please find Ms JOJO

    Mini 10/100/1000Base-TX to 1000Base-FX Media Converter with 5~12V DC
