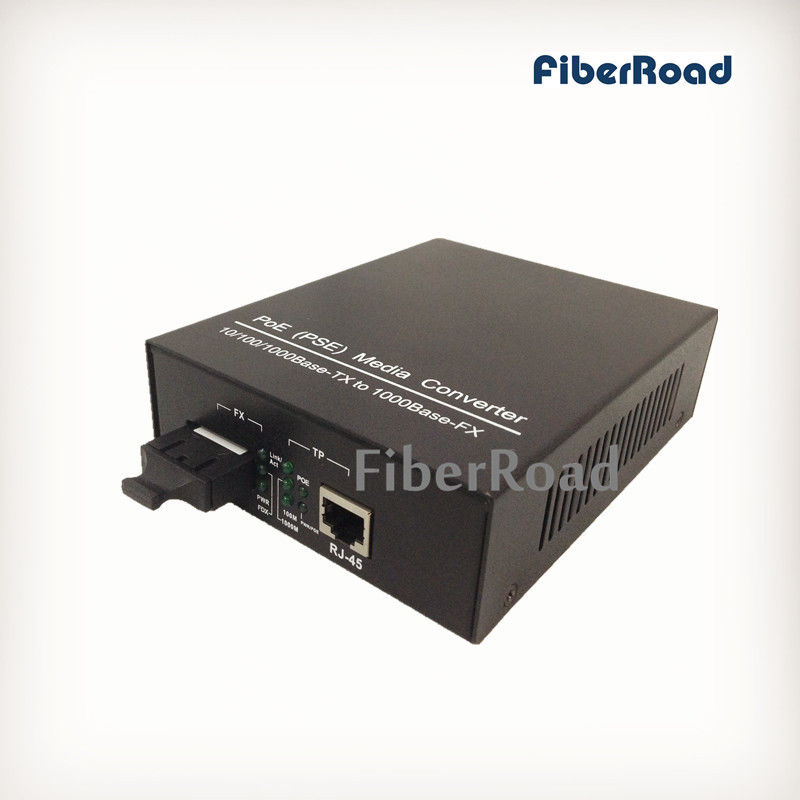

IEEE802.3at 30W SM 20km 1310nm 10/100/1000M PSE Device POE Media Converter

IEEE802.3at 30W SM 20km 1310nm 10/100/1000M PSE Device POE Media Converter

IEEE802.3at 30W SM 20km 1310nm 10/100/1000M PSE Device POE Media Converter

Product Details:

Place of Origin: China
Brand Name: Fiberroad
Certification: CE
Model Number: FR220-1310-30W

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: White box
Delivery Time: 5-7days
Payment Terms: T/T in advance
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description

IEEE802.3at 30W SM 20km 1310nm 10/100/1000M POE PSE Media Converter

Features
-10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
-IEEE802.3at / IEEE802.3af PoE PSE compatible
-Built-in AC/DC power supply
-Over-current protection
-choice of SC, LC, BiDi or other connectors for multimode and singlemode
-DIP switch to set different configurations
-LFP (Link Fault Pass-through) support



FR220 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily.


Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).



The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features.



Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal.



In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.




Data Rates
* 10/100/1000Mbps (IEEE802.3U IEEE802.3z 1000Base-Tx)
* 1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)

Input Power

Requirements

* Input voltage                                ---100 VAC to 240 VAC
* Input frequency                           --- 47 Hz to 63 Hz
POE Output * Pin Assignment and Polarity
   •  For IEEE802.3af standard
                                ---1/2(V+),3/6(V-)
   •  For IEEE802.3at standard (30Watts maximum)
                                ---1/2(V+),3/6(V-)
   •  For IEEE802.3at standard (50Watts maximum)
                                ---1/2/4/5 (V+),3/6/7/8 (V-)
*  Output Power     ---please refer to ordering information
*  Efficiency             ---75% min
*  Short circuit protection            ---auto recovery
*  Over current protection           ---auto recovery

Environmental

Conditions

* Operating temperature                  ---0C to 50C
* Cooling                                              ---free air convection
* Storage temperature                     ---20C to  +85C
* Operating Humidity             ---90% max, non-condensing

Mechanical

Specifications

* Case Material                                   ---Iron
* Case Color                                        ---Black
* Net Weight                                       ---560g approx. / unit
* Dimensions     ---110(W) x 40(H) x 140(L) (mm)
 Do not include transceiver length
Connectors * AC Inlet                                            ---IEC-J-4
* LAN                                                   ---Shielded RJ-45
* Fiber                                      ---see ordering information
Warranty *1 year hardware warranty
*Specifications subject to change without notice

































Ordering Info:



Part Number Standard Output Voltage Output Current Output Power Remark
FR220S-XX-XXX IEEE 802.3af 48V 0.35A max 15.4W max default
FR220-XX-XXX IEEE 802.3af 48V 0.54A max 25W max default
FR220T-XX-XXX IEEE 802.3at 52V 0.60A max 30W max default
FR220H-XX-XXX IEEE 802.3at 52V 1.00A max 50W max default
FR220B-XX-XXX Non-standard 48V 0.60A max 30W max optional
FR220C-XX-XXX Non-standard 24V 1.20A max 30W max optional
*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us
Suffix Description Suffix Description
SC-M005 SC, MM, 550m , 850nm LC-S20 LC/SFP, SM, 20km , 1310nm
SC-S10 SC, SM, 10km , 1310nm LC-S40 LC/SFP, SM, 40km , 1310nm
SC-S20 SC, SM, 20km , 1310nm BS3-S10 BiDi SC, SM, 10km , 1310/1550nm
SC-S40 SC, SM, 40km , 1310nm BS3-S20 BiDi SC, SM, 20km , 1310/1550nm
LC-M005 LC/SFP, MM, 550m , 850nm BS5-S10 BiDi SC, SM, 10km , 1550/1310nm
LC-S10 LC/SFP, SM, 10km , 1310nm BS5-S20 BiDi SC, SM, 20km , 1550/1310nm
