|Place of Origin:||China|
|Minimum Order Quantity:||1PCS|
|Price:||Please send inquiry to email@example.com|
|Packaging Details:||White box|
|Payment Terms:||T/T in advance|

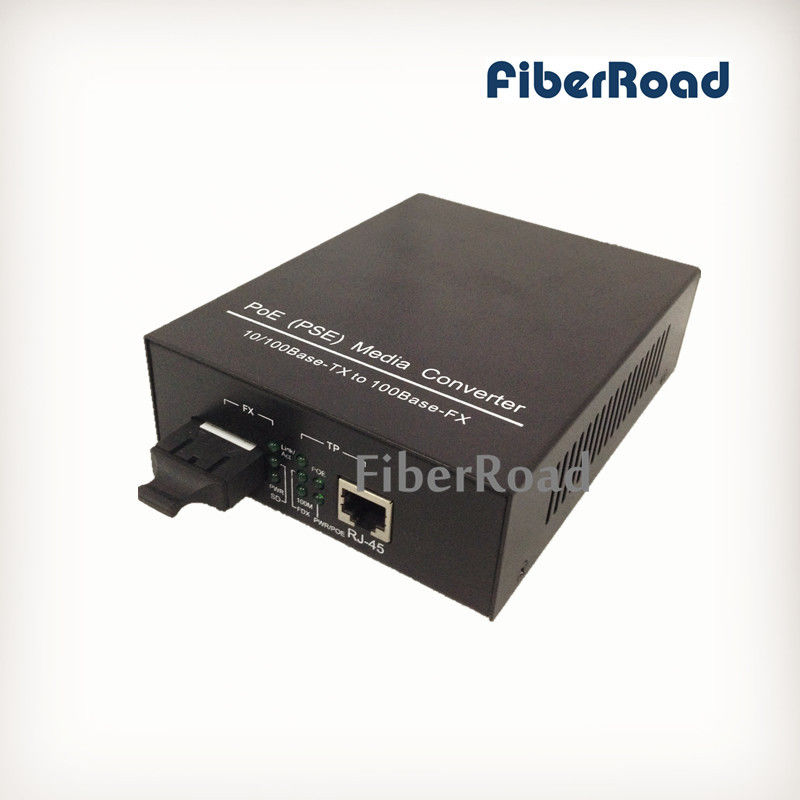

IEEE802.3af 15.4W SM 20km 1310nm SC 10/100M POE PSE Media Converter
*10/100Base-TX UTP to 100Base-FX fiber media convertion
*IEEE802.3at / IEEE802.3af PoE PSE compatible
*Built-in AC/DC power supply
*choice of SC, BiDi or other connectors for multimode and singlemode
*DIP switch to set different configurations
*LFP (Link Fault Pass-through) support
FR200 series is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily.
Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5/CAT5e UTP cable (cable length up to 100meters / 330feets).
The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features.
Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal.
In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
If any questions, please find Ms JOJO
