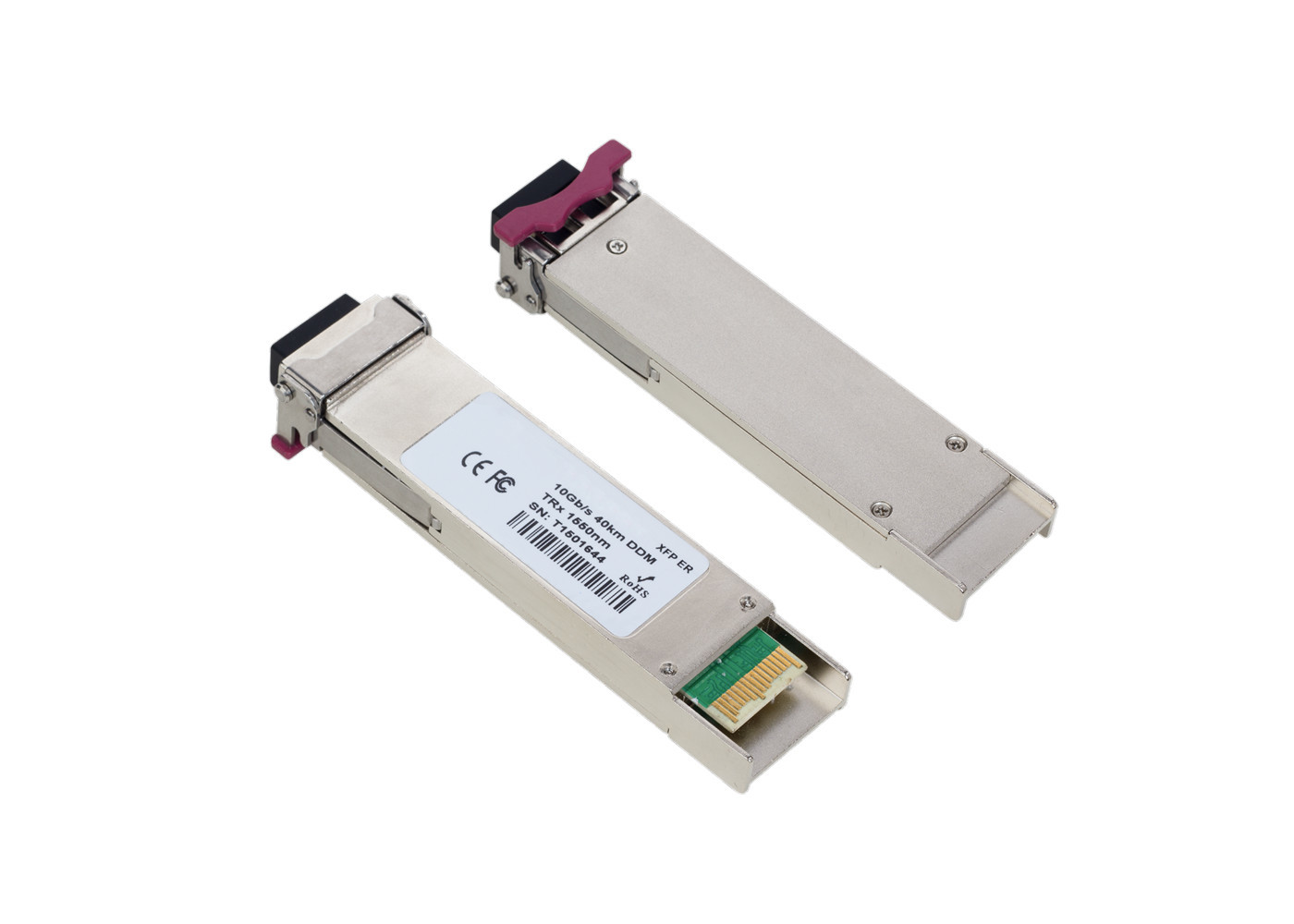

10G XFP 1550nm ER 40KM Transceiver Multi-Vendor MSA Compatible
Hot Pluggable, Duplex LC, 1550nm, EML, Single mode
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength: 1550 nm. / 1550 nm.
- Media Type: Single-Mode Fiber (SMF)
- Optical Budget: 14 dB
- Max. Distance: 40KM
- Duplex LC connector
- Data Rate: 1.24-11.32Gbps
- Temperature:Standard 0°-70°C
- Single power supply voltages : +3.3V
- Power dissipation: <1.5W
- 10GBASE-ER/EW Ethernet
- 1200-Mx-SN-I 10G Fibre Channel
- Other optical links
||Single-Mode Fiber (SMF)
|Minimum Optical Budget:
|Supported Data Rate:
10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps),
10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5
Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel
(2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16
(2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps),
ODU1 (2.498Gbps), ODU2 (10.037Gbps), ODU2e (10.39
9Gbps), OTU1 (2.66Gbps), OTU2 (10.70Gbps), OTU1f
(11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps),
|Tx Wavelength Bandwidth:
||37 nm (1528-1565 nm)
|Rx Wavelength Bandwidth:
||37 nm (1528-1565 nm)
|Minimum Transmitting Power:
|Maximum Transmitting Power:
CDR (Clock and Data
||+3.3V single power supply
||MAXIM, MINDSPEED, SEMTECH
CE, Class 1 FDA and IEC60825-1 Laser Safety
Compliant, INF-8077i XFP MSA Rev.4.5, RoHS
10G-XFP-40 is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 14 dB, with in most cases is enough to reach about 40 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1550 nm. and 1550 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 10G-XFP-40 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
