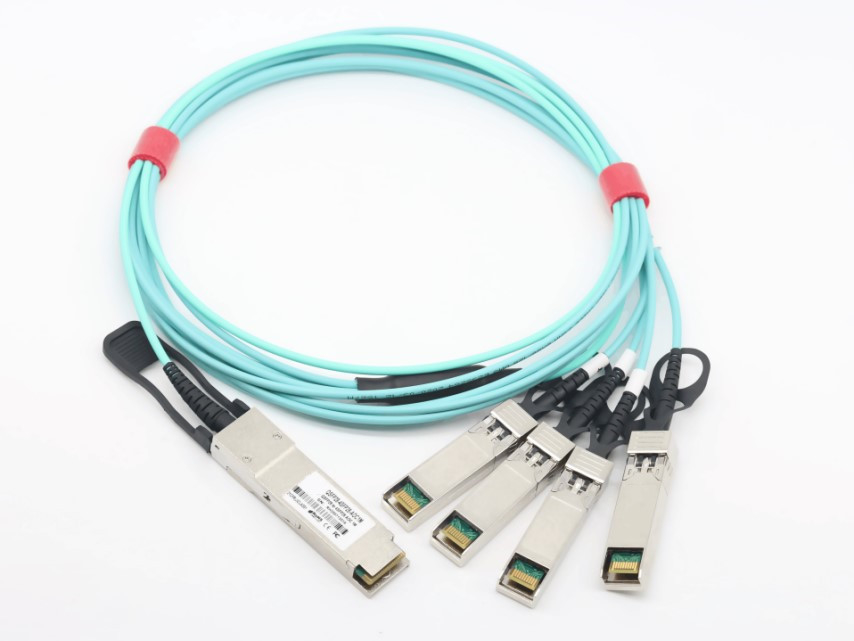

1m Cisco Compatible FY-QSFP28-4SFP25-AOC1M 100Gb/s QSFP28 to 4x25G SFP28 AOC Breakout Active Optical Cable

Product Details:

Place of Origin:	China
Brand Name:	FLYROM
Certification:	CE,ROHS
Model Number:	FY-QSFP28-4SFP25-AOC1M

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Please send inquiry to sales@flyromtech.net
Packaging Details:	Neutral Packing
Delivery Time:	3-7 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Warranty:	3 Years	Data Rate:	100G To 4 X 25G
Certification:	CE RoHS FCC	Product Name:	100Gb/s QSFP+ To 4X SFP28 AOC Cable
Connector:	Qsfp28 And SFP28 Package	Compatible:	QSFP28 /SFP28MSA,H3C,Cisco,Juniper,Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C Etc.
Application:	Data Center, 100/25GBASE-SR/SW 100G/25G Ethernet,Telecommunication,Plug-and-Play	Temperature:	0 To +70°C
Length:	1m	Cable Type:	Optical Cable

1m Cisco Compatible FY-QSFP28-4SFP25-AOC1M 100Gb/s QSFP28 to 4x25G SFP28 AOC Breakout Active Optical Cable

(QSFP28 to 4XSFP28)

100G QSFP28 to 4x 25G SFP28 Active Optical Cables (AOC) offer IT professionals a cost-effective interconnect solution for merging 100G QSFP28 and 25G SFP28 enabled host adapters, switches and servers.For typical applications, users can install this breakout or splitter cable between an available QSFP28 port on 100GE switch and feed up to 4 upstream SFP28 enabled 25GE switches. Each cable features a single SFF-8436 compliant QSFP28 connector rated for 103Gb/s on one end and 4 SFF-8431 complicant SFP28 connectors rated for 25.78Gb/s each on the other end.

Features

SFF-8436 compliant QSFP28 connector
4x SFF-8431 compliant SFP28 connectors
Hot-pluggable electrical interface
850nm VCSEL transmitter
PIN photo-detector receiver
Internal CDR circuits on both receiver and transmitter channels
Low power consumption < 2.5W (QSFP28) < 1W (SFP28)
Length up to 70m using OM3 MMF and 100m using OM4 MMF
Operating case temperature range 0°C to +70°C
All-metal housing for superior EMI performance
RoHS-6 compliant (lead free)

Applications

IEEE 802.3bm 100GBASE-SR4
IEEE 802.3by 25GBASE-SR
InfiniBand SDR/DDR/QDR
High-Performance Computing (HPC) clusters
Servers, switches, storage and host card adapters

Specifications

Parameter	Description
Module Form Factor	QSFP28 (Supports SFF8431/SFF8432/SFF8472)
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 103.125Gbps
BER	<10-12
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8472)

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Ordering Information:
