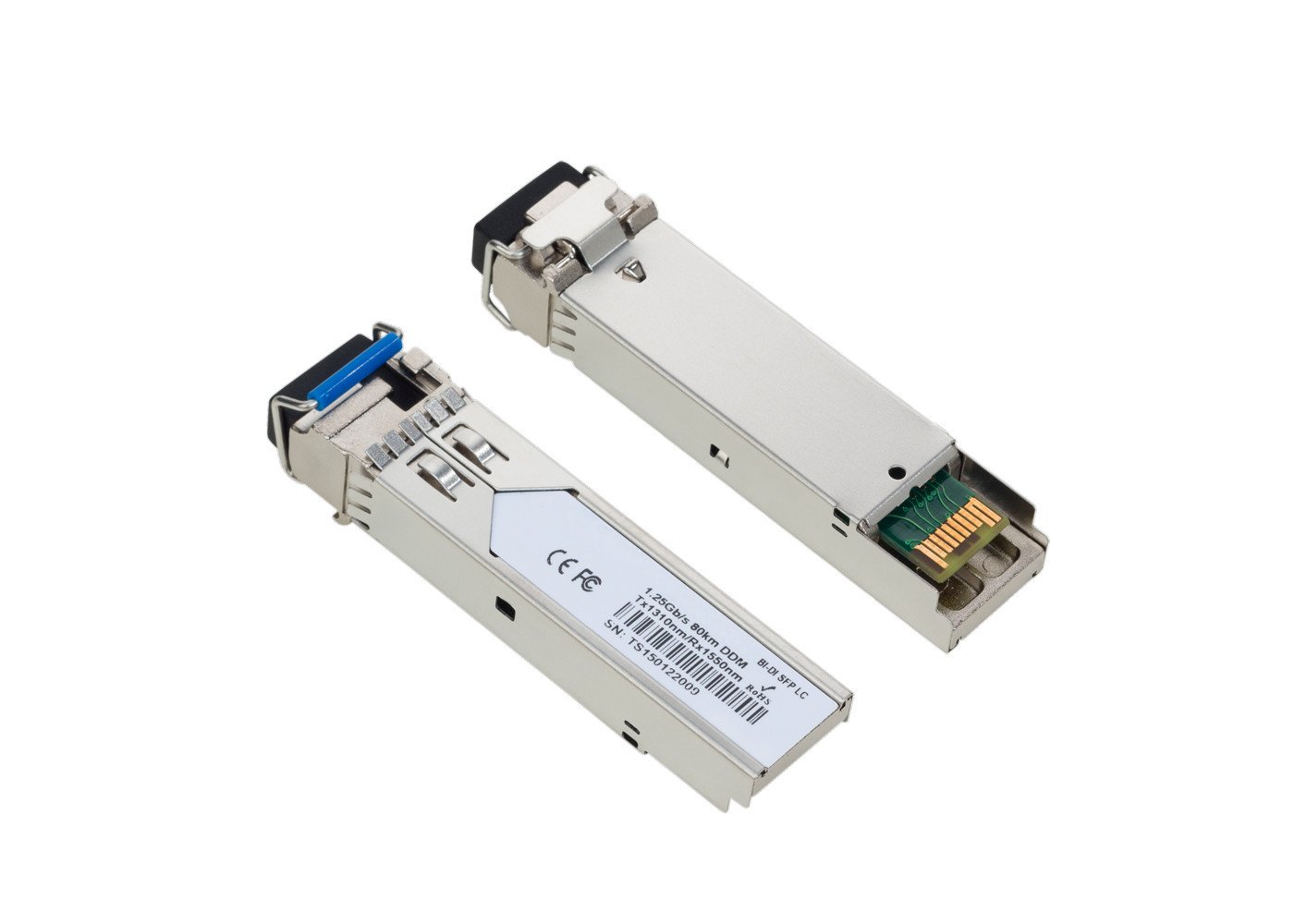

1.25G BIDI Single Fiber SM SFP 1490/1550nm 120KM Transceiver
Hot Pluggable, Single LC, +3.3V, 1490nm Tx/1550nm Rx, DFB-LD&APD, Single-mode, DDM
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength: 1490 nm. / 1550 nm.
- Media Type: Singe-Mode Fiber (SMF)
- Optical Budget: 31 dB
- Max. Distance: 120km
- Data Rate: 1.063-1.25Gbps
- Temperature:Standard 0°-70°C
- Duplex LC connector
- Single +3.3V Power Supply
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- Metro/Access Networks
- 1.25 Gb/s 1000Base-LX Ethernet
- 1×Fibre Channel
- Other Optical Link
BIDI-1.25G-SFP-120-AD is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 31 dB, with in most cases is enough to reach about 120 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1490 nm. and 1550 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. BIDI-1.25G-SFP-120-AD operates in Standard 0°-70°C temperature range and has Single LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
If any question, please add JoJo's Wechat: jojo6616
