10G XFP CWDM 1310nm 10km DDM XFP Transceiver
Hot Pluggable, Duplex LC, +3.3V, 1270～1450nm, CWDM DFB, Single mode
- Type: XFP
- Supports 9.95 to 11.3Gb/s bit rates
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength: 1310 nm / 1270-1610 nm
- Media Type: Single-Mode Fiber (SMF)
- Optical Budget: 9 dB
- Max. Distance: 10 km
- Data Rate: 9.95-11.32Gbps
- Temperature:Standard 0°-70°C
- Power Supply :+3.3V
- Power consumption<1.5W
- 10GBASE-ER/EW Ethernet
- Sonet OC-192/SDH
- 10G Fibre channel
- CWDM Networks
||Single-Mode Fiber (SMF)
|Minimum Optical Budget:
|Supported Data Rate:
10G Ethernet (10.31Gbps), STM-64 (9.95Gbps), ODU2 (10.037Gbps),
ODU2e (10.399Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps),
OTU2f (11.32Gbps), OTU1e (11.049Gbps), OTU2e (11.095Gps)
|Tx Wavelength Bandwidth:
||20nm (1260 – 1280 nm)
|Rx Wavelength Bandwidth:
||G.694.2 CWDM Grid (1270-1610nm)
|Minimum Transmitting Power:
|Maximum Transmitting Power:
||+3.3V single power supply
||MAXIM, MINDSPEED, SEMTECH
CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant,
RoHS, SFF-8431, SFP MSA

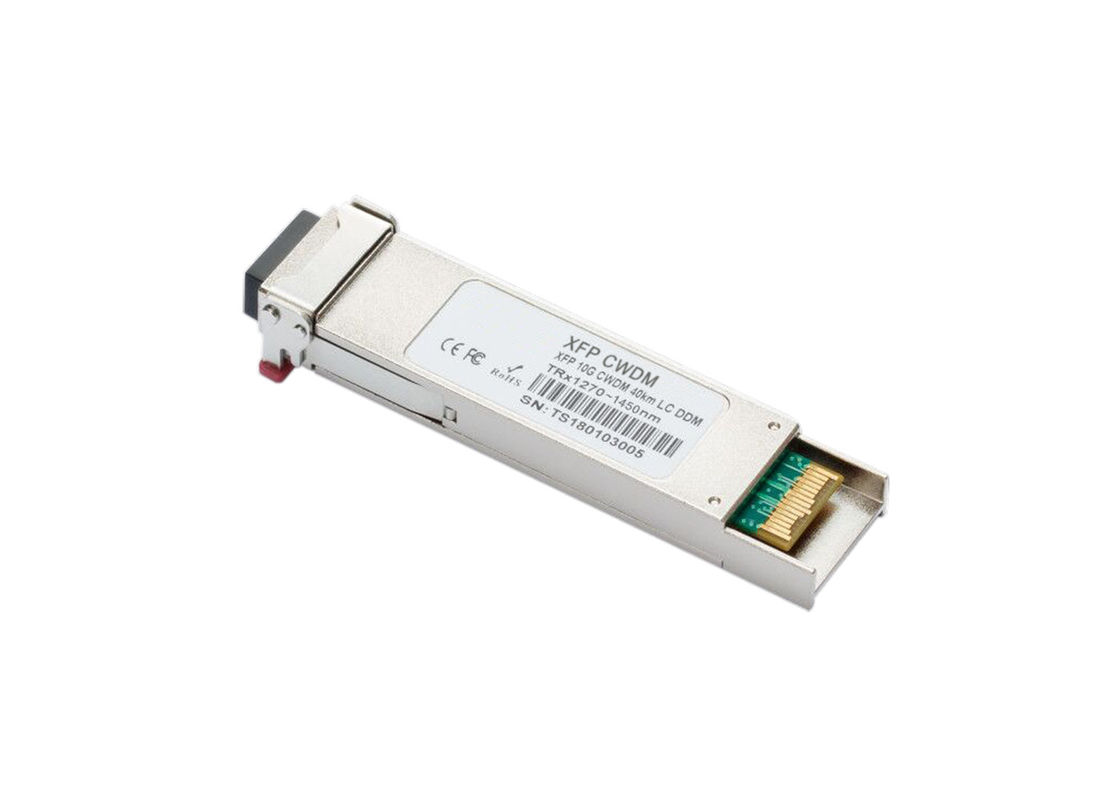

CWDM-10G-XFP-10-31 is Multi-Vendor MSA Compatible XFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 9 dB, with in most cases is enough to reach about 10 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm and 1270-1610 nm PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. CWDM-10G-XFP-10-31 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
If any question, please add JoJo's Wechat: jojo6616
