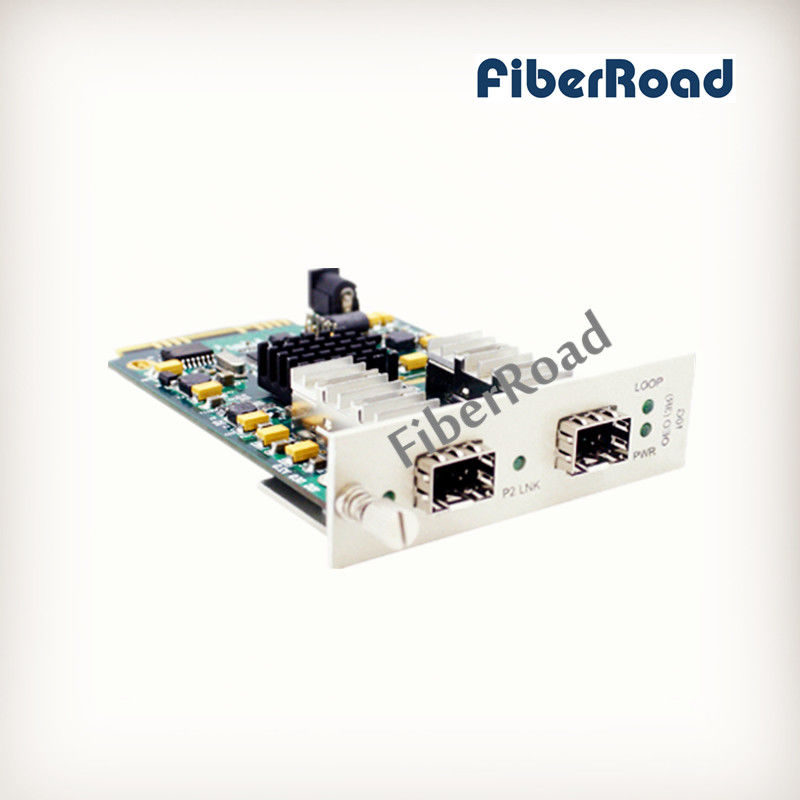

10G OEO Fiber Media Converter Card with 2 SFP+ for 16 Slots Rack

10G OEO Fiber Media Converter Card with 2 SFP+ for 16 Slots Rack

10G OEO Fiber Media Converter Card with 2 SFP+ for 16 Slots Rack

Product Details:

Place of Origin: China
Brand Name: Fiberroad
Certification: CE
Model Number: FR-6603-SS,CARD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Please send inquiry to jojo@fiberroad.com.cn
Packaging Details: White box
Delivery Time: 5-7days
Payment Terms: T/T in advance
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description
High Light:

10G SFP+ Media Converter


10G media converter


Ethernet media converter

10G OEO Fiber Media Converter Card with 2 SFP+ for 16 Slots Rack

16 Slots Manageable Chassis with In-Band managed Media Converter Rack system

  • The Model FR6000 Series is a Centralized Network management platform that provides 16 slots multi-service including Managed Media Converter CardOEO Converter Card, 1+1 protection switching card,CWDM/DWDM MUX/DEMUX Card, etc.

  • All interface cards, fans, management module Card and AC/DC Reduntant Power Supply are hot swappable, allowing online field replacement.

  • Management can be achieved locally or Remote Standalone over the network by Web,SNMP,Telnet or Console. FR-6000 series together with the MUX and DEMUX offer a solution for CWDM/DWDM transmission that is space-efficient and cost-effective.

10G 3R SFP+ to SFP+ OEO Converter Card for 16 Slots Management Multi-service Platform

Key Features:

  • Supporting SFP+ to SFP+, SFP+ to XFP, XFP to XFP
  • Supporting 10Gbase-SR/LR/ER/ZR/LRM to 10Gbase-SR/LR/ER/ZR/LRM
  • Supporting 10Gbase LAN(10.3125 Gbps) and WAN(9.95328 Gbps)
  • 3R function, stable data transmission
  • Short delay time when transparent transmission
  • Supporting Jumbo frame
  • Supporting DMI(Diagnostic Monitoring Interface) function of optical transceivers
  • Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
  • Supporting PRBS31 Pattern Generator and Checker and Loopback test, precisely locating the failure, convenient for link test
  • Economical management function within bandwidth
  • With powerful network management function, supporting WEB and SNMP
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation
  • Supporting 2U chassis (16 slots) and standalone use



Interface Port A SFP+ SFP+ XFP
Transmission Speed 10G 10G 10G
Data  Technical Indexes Function 3R Repeater
Protocols IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM) Access Type 10G LAN/ 10G WAN
Transmission Distance SFP+ module: Up to 80Km
XFP module: Up to 80Km

Maximum Packet

Forwarding Rate

Network management

•  Card type information
•  SFP+ or XFP fiber module detection
•  SFP+ or XFP fiber module DMI function

(Temperature Voltage ,Optical power )

•  Link status detector
•  Enable/Disabled Loopback test function
•  Enable/Disable PRBS Generator and checker function
•  Rate select (10Gbase-Lan or Wan )
•  Remote card's status monitor (only in pairs )

Power requirement Rack-mountable : AC 85 ~ 220V OR DC -48V
Standalone: AC 220V OR DC -48V
Power consumption: ≤6W
Work Environment Operating Temp: 0~ 50 C
Storage Temp: -10~ 70 C
Humidity: 5%~90% (non-condensing )
Dimension Card :11.5mm(W)×78mm(D)
Standalone :156mm(W)×128mm(D)×32mm(H)


Ordering Information:

P/N Description Remark
FR-6603-SS 10G OEO Converter Card (3R) SFP+ TO SFP+
FR-6603R-SS 10G OEO Converter  3R (Remote Standalone) SFP+ TO SFP+
FR-6603-SX 10G OEO Converter Card (3R) SFP+ TO XFP
FR-6603R-SX 10G OEO Converter 3R (Remote Standalone) SFP+ TO XFP
FR-6603-XX 10G OEO Converter Card (3R) XFP TO XFP
FR-6603R-XX 10G OEO Converter 3R (Remote Standalone XFP TO XFP


10G 3R SFP+ to SFP+ OEO Converter Card for 16 Slots Management Multi-service Platform
