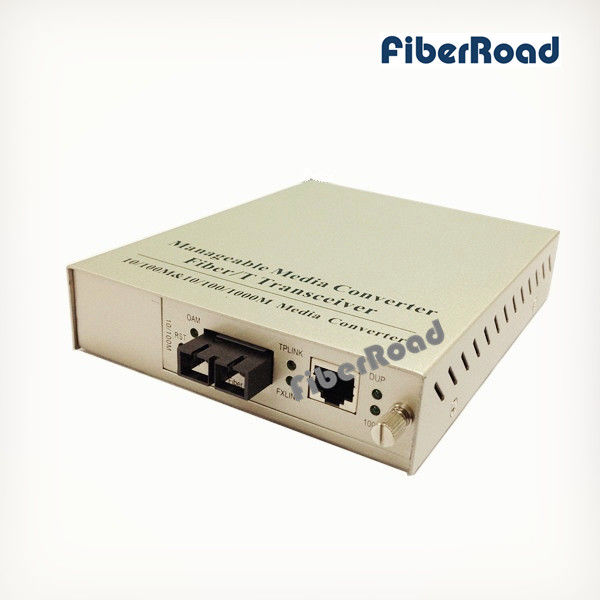

10/100M, 10/100/1000M IEEE802.3ah OAM manageable ethernet fiber media converter
Description:
1. Standalone One To One Manageable Media Converters
2. With IP-based Web Interface
3. Supporting remote and local management
4. Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
5. Loop detection / Broadcast / Multicast / Unicast storm control
6. Data rate: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
7. Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
8. Supports Port Status / Ethernet Statistics on both TP and Fiber intertace.
9. Supports Maximum frame size to 16K bytes.
10.Loop detection / Broadcast / Multicast / Unicast storm control.
11.16 TCP / UDP Filter groups
12. Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
Technical Parameters:
Ethernet Interface
Meet standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3X
Data rate: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
Connector: RJ-45 UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m.
Fiber port Connector: ST, SC, FC. LC
Operating wavelength: 850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode.
Optical fibers: Multi-mode: 50/125, 62.5/125, 100/140um;
Single-mode: 8.3/125, 8.7/125, 9/125, 10/125um
Transmission distance: Dual fiber: Up to 100km
Single fiber: Up to 80km
Basic working environment
Operating Temp: 0~50 C Storage Temp: -10~70 C
Humidity: 5%~90%(non-condensing)
Dimension(standalone): 156mm(W)*128mm(D)*32mm(H)
Power supply: 85VAC~265VAC or -40VDC~-57VDC
Power consumption: ≤ 5W
|
