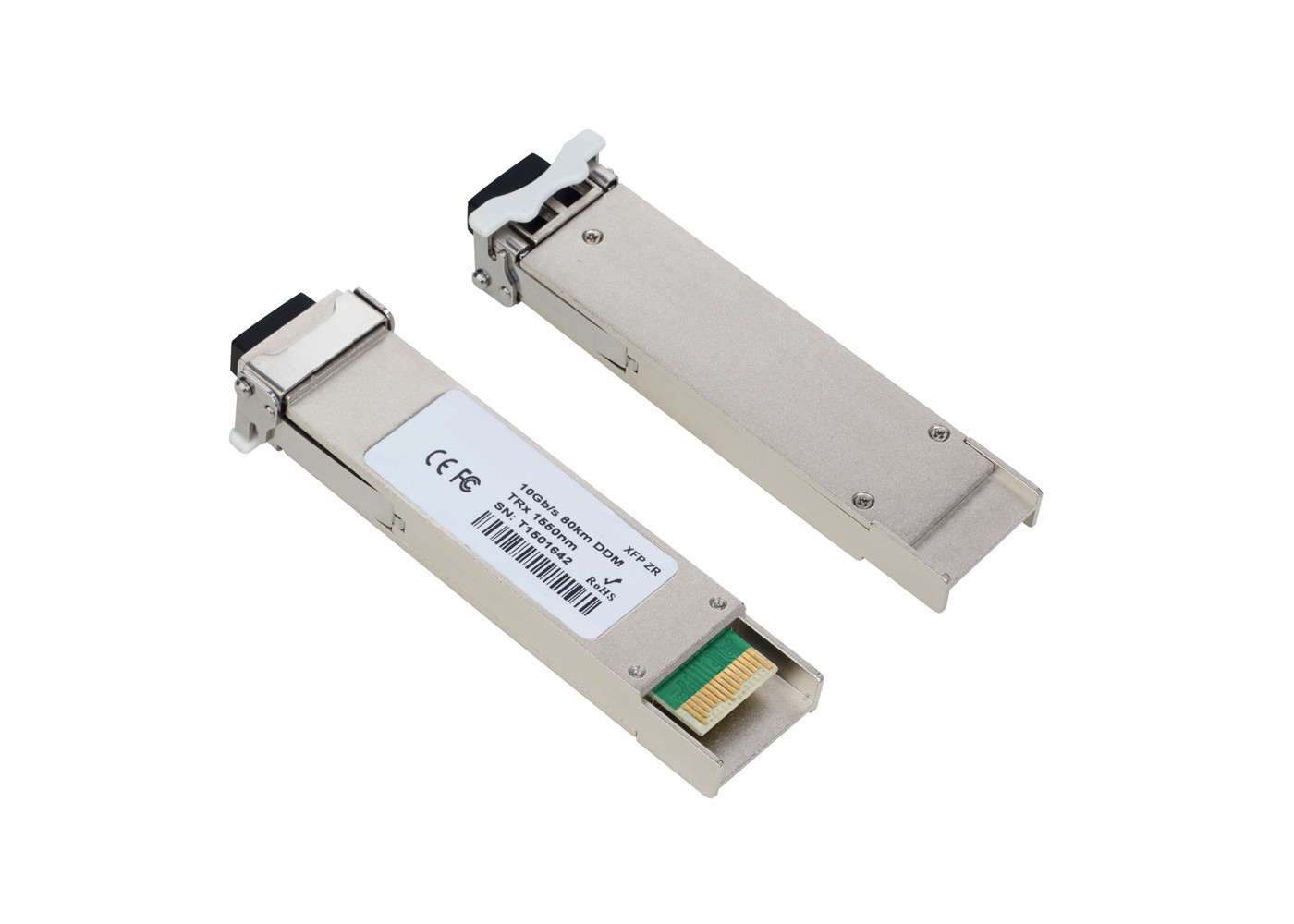

10G XFP 1550nm 80km ZR Transceiver Multi-Vendor MSA Compatible

10G XFP 1550nm 80km ZR Transceiver Multi-Vendor MSA Compatible

10G XFP 1550nm 80km ZR Transceiver Multi-Vendor MSA Compatible

Product Details:

Place of Origin: China
Brand Name: FR
Certification: CE,ROHS
Model Number: 10G-XFP-80

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Please inquiry jojo_he2010@foxmail.com
Packaging Details: Neutrial packing
Payment Terms: T/T,L/C
Supply Ability: 10000pcs/Month
Contact Now
Detailed Product Description
Speed: 10G Distance: 80KM
Type: Single-Mode Fiber (SMF) Wavelength: 1550nm
Optical Budget: 23dB Compatibility: Multi-Vendor MSA

10G XFP 1550nm ZR 80KM Transceiver Multi-Vendor MSA Compatible

Hot Pluggable, Duplex LC, 1550nm, EML, Single mode





Features:

  • Type:XFP
  • Compatibility:Multi-Vendor MSA Compatible
  • Tx/Rx Wavelength: 1550 nm. / 1550 nm.
  • Media Type: Single-Mode Fiber (SMF)
  • Optical Budget: 23 dB
  • Max. Distance: 80KM
  • Duplex LC connector
  • Data Rate: 1.24-11.32Gbps
  • Temperature:Standard 0°-70°C
  • Single power supply voltages : +3.3V
  • Power dissipation: <1.5W



Applications:

  • 10GBASE-ZR/ZW Ethernet
  • 1200-Mx-SN-I 10G Fibre Channel
  • Other optical links


Specification

Media Type: Single-Mode Fiber (SMF)
TX Wavelength: 1550 nm.
RX Wavelenght: 1550 nm.
Minimum Optical Budget: 23 dB
Maximum Distance: 80km
Supported Data Rate: 1.24-11.32Gbps
Supported Applications:

10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps),

10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5

Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel

(2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16

(2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps),

ODU1 (2.498Gbps), ODU2 (10.037Gbps), ODU2e (10.39

9Gbps), OTU1 (2.66Gbps), OTU2 (10.70Gbps), OTU1f

(11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps),

OTU2e (11.095Gps)

DDM/DOM: Support
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 37 nm (1528-1565 nm)
Rx Wavelength Bandwidth: 37 nm (1528-1565 nm)
Minimum Transmitting Power: -0 dB
Maximum Transmitting Power: 4 dB
Receiver Sensitivity: -23 dBm
Receiver Overload: -7 dBm
Dispersion: 1600 ps/nm
Transmitter Type: EML Laser
Receiver Type: PIN photodiode

CDR (Clock and Data

Recovery) chip

Supported
Power: +3.3V single power supply
Chipset: MAXIM, MINDSPEED, SEMTECH
Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety

Compliant, INF-8077i XFP MSA Rev.4.5, RoHS





10G-XFP-80 is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance.



However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1550 nm. and 1550 nm. PIN Photodiode receiver.



It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 10G-XFP-80 operates in Standard 0°-70°C temperature range and has Double LC interface.





All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.





If any question, please add JoJo's Wechat: jojo6616
Skype: jojo_he2010
