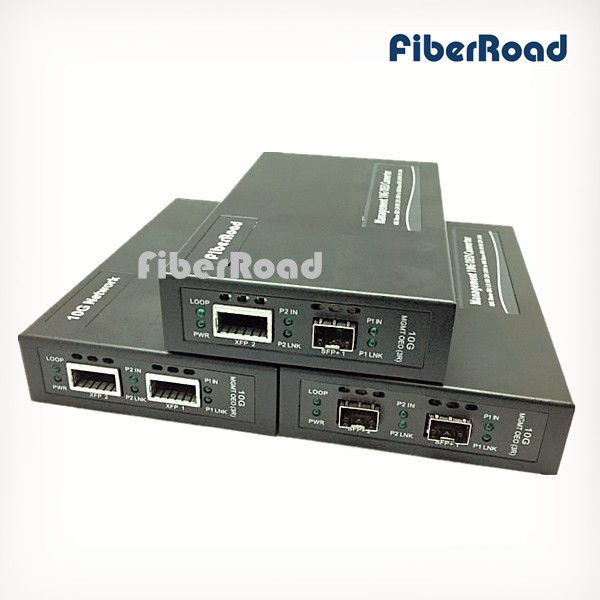

10G Fiber Media Converter up to 80km OEM Available

10G Fiber Media Converter up to 80km OEM Available

10G Fiber Media Converter up to 80km OEM Available

Product Details:

Place of Origin: China
Brand Name: Fiberroad
Certification: CE
Model Number: FR-MOEO-10G-3R

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Please send inquiry to jojo@fiberroad.com.cn
Packaging Details: White box
Delivery Time: 5-7days
Payment Terms: T/T in advance
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description

Long Haul Standalone Web-Smart 10G OEO Converter 3R Repeater

※10G OEO Converter (3R Repeater)
Features:
.Diversified interfaces including SFP+ to SFP+, SFP+ to XFP, XFP to XFP,
.Supports 3R (Re-generation, Re-timing, Re-shaping)
.Fiber mode converter between fiber to fiber 10Gbps equipment, or fiber repeater for long distance transmission
.1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
.OEO for network backbone(SAN, LAN, MAN)
.Support 2U Rack (16 channel) and standalone use
.Support Jumbo Frame
.Transmission rate:9.95Gbps-11.35Gbps
.Support hot plugging



Ordering Information:
FR-OEO-10G-3R10G Optical-Electrical-Optical Converter(3R)SFP+ to SFP+
SFP+ to XFP
XFP to XFP



※10G OEO Converter (3R Repeate

*3R Repeater.
*Support Jumbo Frame.
*Transparent Transport and very low delay.
*Support ITUT prescribed DWDM/CWDM wavelength.
*Support DMI function for SFP+/XFP fiber module.
*Support Loopback test function.
*Powerful Web Management function.
*Full State Led display.
*Easy installation.

Fiberroad provides 10G Optical-Electrical-Optical Converter(3R) to apply in the solution of FTTx,CWDM/DWDM, with the speed of 10G.

FR-MOEO-10G-3R, Support 10G LAN TO LAN OR WAN TO WAN.  It provides an easy-to-access Web Management, allowing users to view system status, counters, and network statistics.

With various Interface:
       SFP+ to SFP+
       SFP+ to XFP
       XFP   to XFP


Interface

Port A

SFP+

SFP+

XFP



Port B

SFP+

XFP

XFP



Interface

Port C

RJ45, Ethernet port to configure the web management




Transmission Speed

10G

10G

10G




Data

Technical Indexes

Function

3R Repeater




Protocols

IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LR)

Access Type

10G LAN/ 10G WAN




Transmission Distance

SFP+ module: Up to 80Km
XFP module: Up to 80Km




Maximum Packet Forwarding Rate

14,880,950/S




Network management
information:

. SFP+ or XFP fiber module detection
.SFP+ or XFP fiber module DMI function (Temperature , Voltage , Optical power )
.Link status detector
.Enable/Disabled Loopback test function
.Rate select (10Gbase-Lan or Wan )









Power requirement

Standalone: AC 100~220V
Power consumption: ≤6W





Work Environment

Operating Temp: 0~ 50 C
Storage Temp: -10~ 70 C
Humidity: 5%~90% ( non-condensing )





Dimension

Standalone :173mm(W)x106mm(D)x35mm(H)




If any questions, please find Ms JOJO
