1U 12 Slots Mini Media Converter Rack Mount Chassis

1U 12 Slots Mini Media Converter Rack Mount Chassis

    • 1U 12 Slots Mini Media Converter Rack Mount Chassis
    • 1U 12 Slots Mini Media Converter Rack Mount Chassis
    • 1U 12 Slots Mini Media Converter Rack Mount Chassis
  • 1U 12 Slots Mini Media Converter Rack Mount Chassis

    Product Details:

    Place of Origin: China
    Brand Name: FiberRoad
    Certification: CE,ROHS
    Model Number: FR-2000-AA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Please send inquiry to jojo@fiberroad.com.cn
    Packaging Details: Neutrial packing
    Delivery Time: 3-7 working days
    Payment Terms: T/T, L/C
    Supply Ability: 1000PCS/MONTH
    Contact Now
    Detailed Product Description

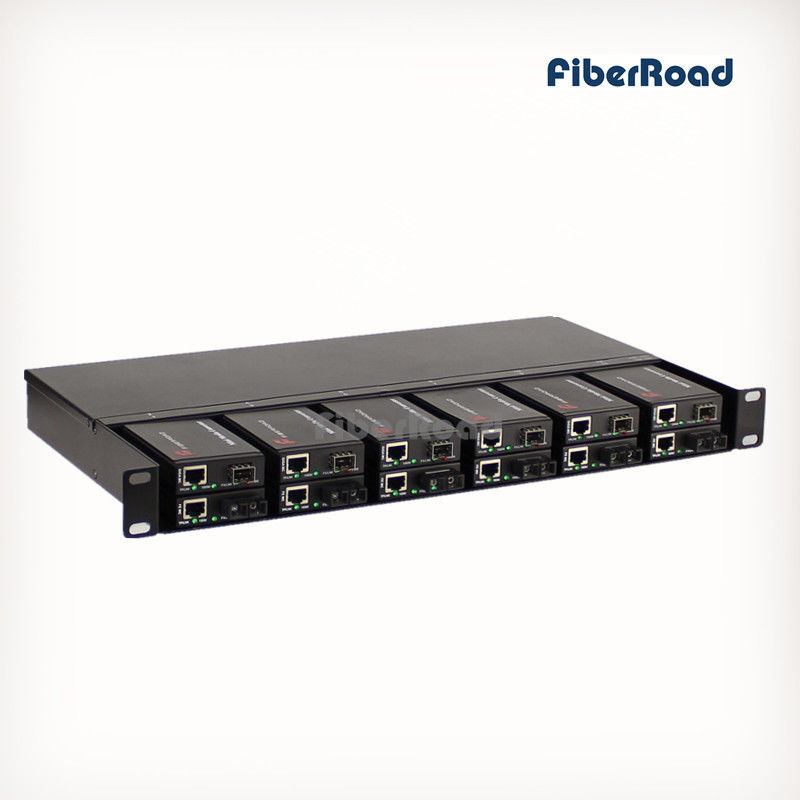

    1U 12 Slots Mini Media Converter Rack Mount Chassis

    Key Features

    • 1 Suitable for standard 19 inch network rack
    • 1U height, maximum 12 slots capacity.
    • Supports several module types for media converters
    • Supports redundant power supply modules
    • Supports hot-swappable operating
    • Two side LED indicators (front and rear)



    Description

    The 1U height 12 slots media converter rack mount chassis is specially designed for accommodating chassis-based mini Media Converters. It is a standard 19 inch 1U height rack mount chassis which can be mounted in the standard 19-inch rack. The chassis lets you install multiple mini media converters in an equipment rack together with the network devices. This provides for space saving, and the cabling will look neat. The chassis works with its own universal AC/DC or DC/DC power supply. For maximum power availability, an optional redundant power supply is available for installation in the chassis. The configuration of active/standby power supply ensures uninterruptible operation of the system.



    Specification:

    Power Requirements:

    . Input voltage : AC 100-240V 50/60Hz or/and DC 36-72V

    (48V typical)

    . Output voltage : DC 12V

    . Power output: 36 Watts maximum

    LED indicators:

    . PWR: power supply (red)

    . FAN: cooling FAN (green)

    Environmental Conditions:

    . Operating temperature  : 0°C to 50°C
    . Cooling : brushless DC fan

    . Storage temperature :  -20°C to  +70°C
    . Operating Humidity : 90% max, non-condensing

    Mechanical Specifications

    . Case Material : Iron
    . Case Color : Black
    . Net Weight : 3.2kg approx. / unit
    . Dimensions: 485 (W) x 270(H) x 44.5 (L) (mm)

    Warranty

    . 2 years hardware warranty



    Note: Specifications subject to change without notice



    Ordering information

    FR-2000-AA   (12-slot dual AC/DC power suppliers)

    FR-2000-AD   (12-slot combined AC/DC and DC/DC power suppliers)

    FR-2000-DD   (12-slot dual DC/DC power suppliers)
