| Output Power: | 48VDC 7.3A(350W). | Input Voltage: | 100V ~ 240VAC, 50Hz ~ 60Hz. |
|---|

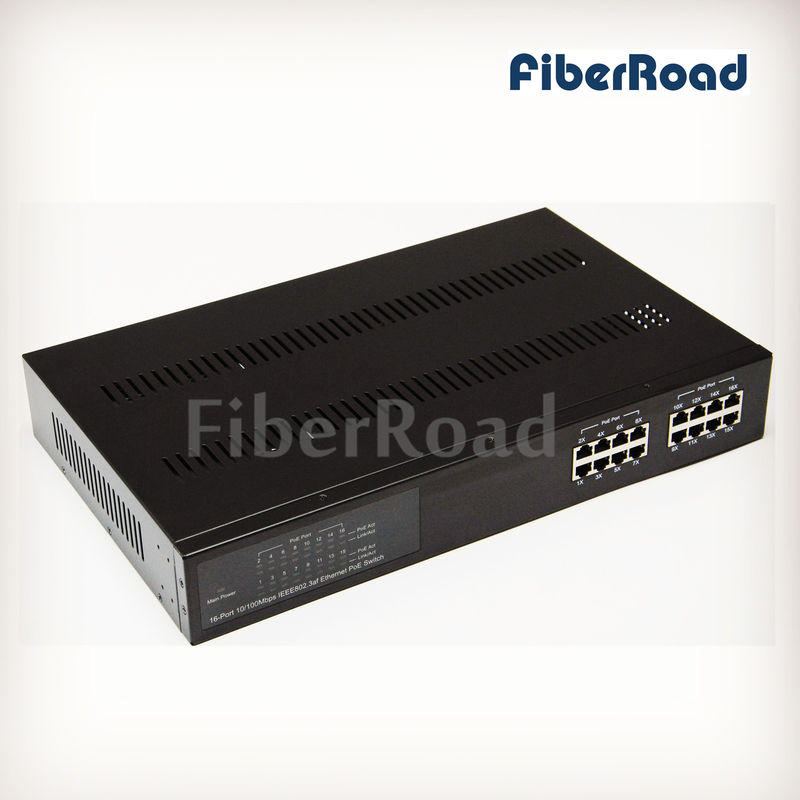

16-Port 10/100M Ethernet PoE Switch 15.4W IEEE802.3af
Description
The 16-Port 10/100M Ethernet POE Switch is an unmanaged POE Switch, designed to enhance workgroup performance while providing a high level of flexibility.
It provides 16 Ports 10/100Mbps and 16 IEEE802.3af Power over Ethernet(POE) ports for workstations.
Features:
*IEEE802.3af Power over Ethernet (POE) Standard Compliant.
*16X10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports .
*Built-in 16 POE Port.(Port 1 ~ Port 16).
*Supports POE Power Maximum 15.4W for each POE Port.
*Supports POE Power Device(PD) classification identify.
*Store and Forward Switching Method.
*Built-in 2.75Mb RAM Data Buffer and 4K entries MAC Address Table.
*IEEE802.3x Flow Control for Full-Duplex: Back Pressure Flow Control for Half-Duplex Mode.
*Supports 802.1Q Vlan, Port-Based IEEE802.1p Qos.
*Supports flexible 3 Trunking Groups(Port 0-3, Port 4-7, Gigabit Port 1)
*Store & forward, share memory,non-blocking architecture
*No Special Network Cable Required
*Plug and Play
*IEEE802.3at Standard Options
|
Standard |
IEEE 802.3 10BASE-T Ethernet. |
|
IEEE 802.3u 100BASE-TX Fast Ethernet. |
|
|
IEEE 802.3x Full Duplex Flow Control. |
|
|
IEEE 802.3af Power over Ethernet. |
|
|
Protocol |
CSMA/CD. |
|
Data Transfer Rate |
Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex). |
|
Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex). |
|
|
Network Cables |
10Base-T: 2-pair UTP Cat 3, 4, 5 up to 100 meters. |
|
100Base-T : 2-pair UTP Cat 5, 5e up to 100 meters. |
|
|
Number of Ports |
16 x 10/100Mbps auto-MDIX RJ-45 ports with 16 PoE enabled ports. |
|
PoE power on RJ-45 |
Power +: pin 3 & pin 6 ; Power –: pin 1 & pin 2. |
|
Power Supply |
Input: 100V ~ 240VAC, 50Hz ~ 60Hz. Output: 48VDC 7.3A(350W). |
|
Power Consumption |
8.0W ( max with no PD device connected). 340 watts (23 PoE ports 15.4W/port.) |
|
Temperature |
Operation: 0℃ ~ 40 ℃ or 32℉ ~ 104 ℉. |
|
Storage Temperature: -10℃ ~ 70 ℃ or 14℉ ~ 158 ℉. |
|
|
Humidity |
Relative Humidity: 5% - 95%. |
|
Dimensions |
430mm W x 256mm D x 66.4mm H. |
|
EMI |
FCC Class B, CE Mark Class B. |
|
Safety |
110VAC to 240VAC power supply UL listed. |
|
RAM buffer |
64K bytes per device. |
|
Filtering Address Table |
1K bytes per device. |
|
Packet Filtering Forwarding Rate |
10Mbps Ethernet: 14,880/pps. 100Mbps Ethernet: 148,800/pps 1000MBase-T Ethernet: 1,488,000/pps. |
|
MAC address Learning |
Automatic update. |
|
Transmission Method |
Store – and – Forward. |
