Place of Origin: | China |
Brand Name: | FiberRoad |
Certification: | CE,ROHS |
Model Number: | FR1024GS-AF |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Please send inquiry to jojo@fiberroad.com.cn |
Packaging Details: | Neutral Packing |
Delivery Time: | 3-7 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000pcs/Month |
Output Voltage: | 48V DC | Output Power: | 48VDC 7.3A(350W) |
---|---|---|---|
Input Voltage: | Input: 100V ~ 240VAC, 50Hz ~ 60Hz. |

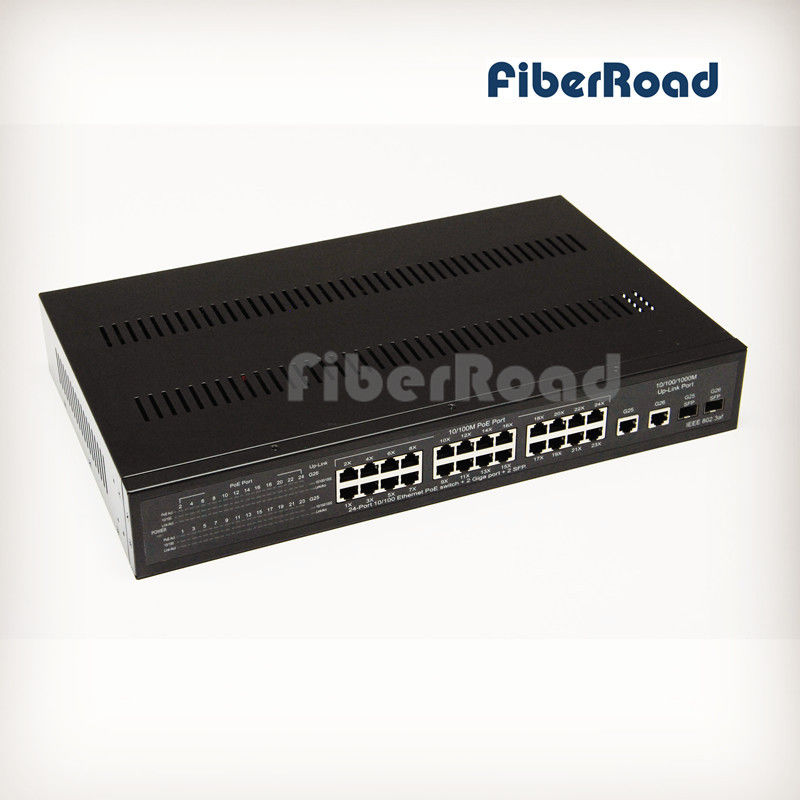

10/100M 24 Ports Ethernet POE Switch with 2 Gigabit TP/SFP Ports Combo
Description:
*10/100Base-T 24-Port +2 Gigabit TP & SFP Ports is an unmanaged POE Switch, designed to enhance workgroup performance while providing a high level of flexibility.
*It provides 24 Ports 10/100Mbps and 24 IEEE802.3af Power over Ethernet(POE) ports for workstations, plus 2 Gigabit RJ45 Ports and 2 Gigabit SFP Ports for workgroup and departments.
Features:
*IEEE802.3af Power over Ethernet (POE) Standard Compliant.
*24X10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.
*Built-in 24 POE Port.(Port 1 ~ Port 24).
*Supports POE Power Maximum 15.4W for each POE Port.
*Supports POE Power Device(PD) classification identify.
*Store and Forward Switching Method.
*Built-in 2.75Mb RAM Data Buffer and 4K entries MAC Address Table.
*IEEE802.3x Flow Control for Full-Duplex: Back Pressure Flow Control for Half-Duplex Mode.
*Supports 802.1Q Vlan, Port-Based IEEE802.1p Qos.
*Supports flexible 3 Trunking Groups(Port 0-3, Port 4-7, Gigabit Port 1)
*1000Mbps Support based on Type of SFP,LC(24+2 GS only)
*No Special Network Cable Required
*Plug and Play
*IEEE802.3at Standard Options
Standard |
IEEE 802.3 10BASE-T Ethernet. |
IEEE 802.3u 100BASE-TX Fast Ethernet. |
|
IEEE 802.3x Full Duplex Flow Control. |
|
IEEE 802.3af Power over Ethernet. |
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet (twisted-pair copper). |
|
Protocol |
CSMA/CD. |
Data Transfer Rate |
Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex). |
Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex). |
|
Gigabit Ethernet: 2000Mbps (full duplex). |
|
Network Cables |
10Base-T: 2-pair UTP Cat 3, 4, 5 up to 100 meters. |
100Base-T : 2-pair UTP Cat 5, 5e up to 100 meters. |
|
1000Base-T: 4-pair UTP Cat5e 6, up to 100meters. |
|
50/62.5um LC signal model or Multi model fiber cable. |
|
Number of Ports |
24 x 10/100Mbps auto-MDIX RJ-45 ports with 24 PoE enabled ports. |
PoE power on RJ-45 |
Power +: pin 3 & pin 6 ; Power –: pin 1 & pin 2. |
Power Supply |
Input: 100V ~ 240VAC, 50Hz ~ 60Hz. Output: 48VDC 7.3A(350W). |
Power Consumption |
15.0W ( max with no PD device connected). 335 watts (350W Power). |
Temperature |
Operation: 0℃ ~ 40 ℃ or 32℉ ~ 104 ℉. |
Storage Temperature: -10℃ ~ 70 ℃ or 14℉ ~ 158 ℉. |
|
Humidity |
Relative Humidity: 5% - 95%. |
Dimensions |
430mm W x 256mm D x 66.4mm H. |
EMI |
FCC Class B, CE Mark Class B. |
Safety |
110VAC to 240VAC power supply UL listed. |
RAM buffer |
2.75Mb bytes per device. |
Filtering Address Table |
4K entries per device. |
Packet Filtering Forwarding Rate |
10Mbps Ethernet: 14,880/pps. 100Mbps Ethernet: 148,800/pps 1000MBase-T Ethernet: 1,488,000/pps. |
MAC address Learning |
Automatic update. |
Transmission Method |
Store – and – Forward. |
