| Place of Origin: | China |
| Brand Name: | FiberRoad |
| Certification: | CE/ROHS |
| Model Number: | FR-IMC-P1F1T-SFP |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Please send inquiry to jojo@fiberroad.com.cn |
| Packaging Details: | Neutrial packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000PCS/MONTH |
| Standard: | IEEE802.3AF/AT,15.4W | POE Input Voltage:: | 48V (max 53V), |
|---|---|---|---|
| Copper Port: | 1 X 10/100Mbps Auto-sensing RJ45 Port | Fiber Port: | 1 X 100Mbps SFP Fiber Port |
| Safety Class: | IP30 Protection | Application: | IP Surveillance |

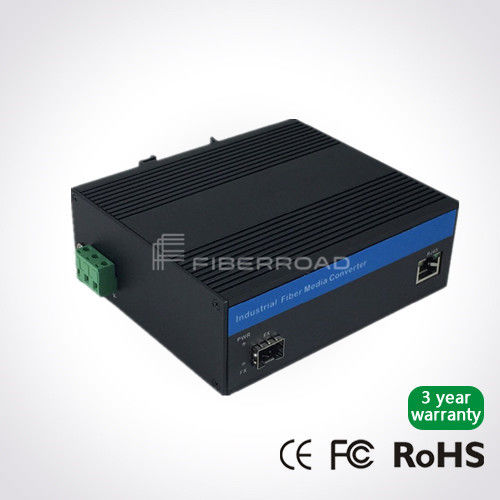

10/100Mbps 15.4W POE Industrial media converter
Key Features
FR-IMC-P1F1T-SFP is the 10/100 Mbps industrial POE fiber media converter, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP30 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification:
|
Product Name |
10/100Mbps Industrial POE Fiber Media Converter (1F+1TP) |
|
Model No. |
FR-IMC-P1F1T-SFP |
|
Port |
1 x 100Mpbs SFP port MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
|
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 2KM |
|
LEDs |
Power, network, fiber |
|
Power supply |
Input voltage: DC 12-36V No-load power consumption: 5W Reverse polarity protection: support POE power supply input voltage: 48V (max 53V), Single PoE power supply output power: 15.4W (port 1) (802.3at standards required special instructions) |
|
Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
|
Safety |
CE Mark ,commercial CE/LVD EN60950 |
|
Mechanical information |
Shell:Corrugated metal shell Safety class:IP30 Dimension:118 x 138.5 x48mm Mounting method:Din-rail mounting |
|
Warranty |
Replacement within 1 year; 5 years repairing |
Ordering Information:
| P/N | Description |
| FR-IMC-P1F1T-SFP | Industrial Grade 10/100Base-TX to 100Base-FX POE Media Converter |
| FR-IMC-P1GF1GT-SFP | Industrial Grade 10/100/1000Base-TX to 1000Base-FX POE Media Converter |
