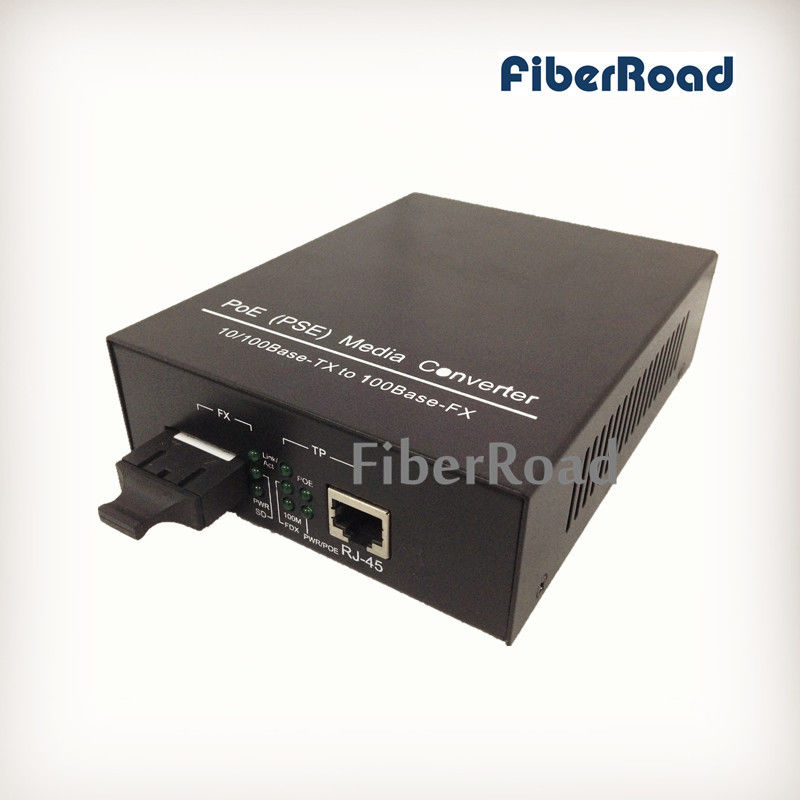

IEEE802.3at 30W MM 2km 1310nm SC 10/100M POE PSE Media Converter
*10/100Base-TX UTP to 100Base-FX fiber media convertion
*IEEE802.3at / IEEE802.3af PoE PSE compatible
*Built-in AC/DC power supply
*choice of SC, BiDi or other connectors for multimode and singlemode
*DIP switch to set different configurations
*LFP (Link Fault Pass-through) support
FR200 series is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily.
Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5/CAT5e UTP cable (cable length up to 100meters / 330feets).
The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features.
Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal.
In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
