|Place of Origin:||China|
|Model Number:||FR220 Series|
|Minimum Order Quantity:||1PCS|
|Packaging Details:||White box|
|Payment Terms:||T/T in advance|

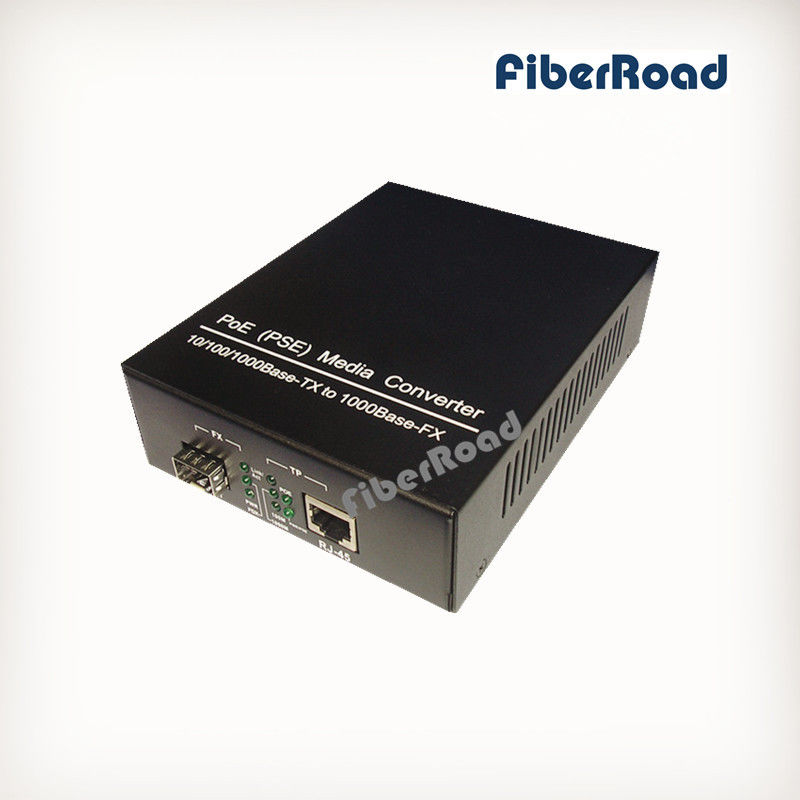

10/100/1000M POE (PSE) Media Converter, POE Converter
-10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
-IEEE802.3at / IEEE802.3af PoE PSE compatible
-Built-in AC/DC power supply
-choice of SC, LC, BiDi or other connectors for multimode and singlemode
-DIP switch to set different configurations
-LFP (Link Fault Pass-through) support
FR220 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily.
Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).
The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features.
Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
