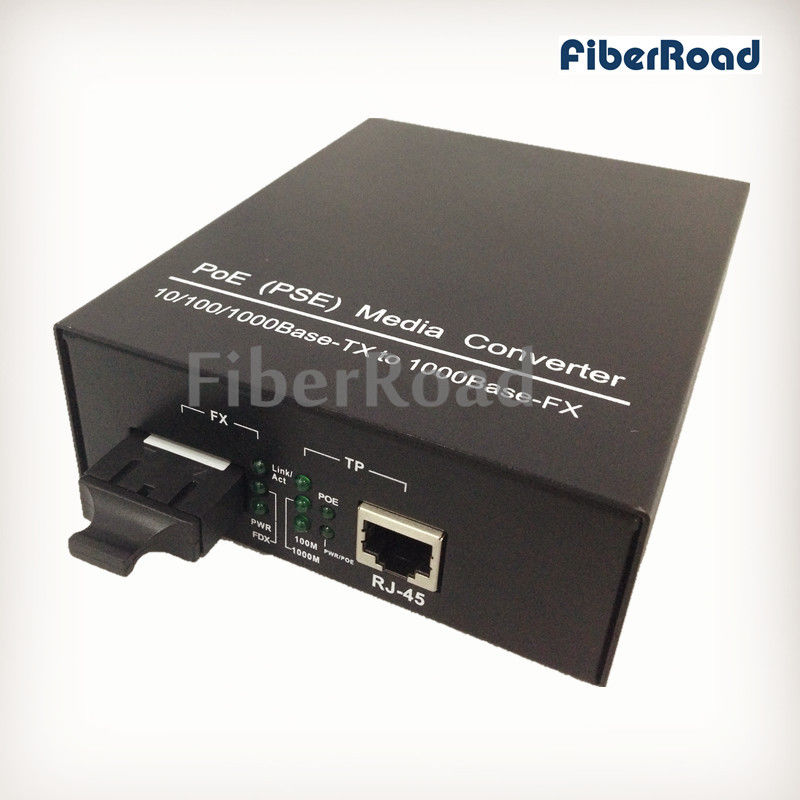

IEEE802.3af 25W MM 550m 850nm 10/100/1000M POE PSE Media Converter

IEEE802.3af 25W MM 550m 850nm 10/100/1000M POE PSE Media Converter

    • IEEE802.3af 25W MM 550m 850nm 10/100/1000M POE PSE Media Converter
    • IEEE802.3af 25W MM 550m 850nm 10/100/1000M POE PSE Media Converter
  • IEEE802.3af 25W MM 550m 850nm 10/100/1000M POE PSE Media Converter

    Product Details:

    Place of Origin: China
    Brand Name: Fiberroad
    Certification: CE
    Model Number: FR220-850-25W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: White box
    Delivery Time: 5-7days
    Payment Terms: T/T in advance
    Supply Ability: 1000PCS/MONTH
    Contact Now
    Detailed Product Description

    IEEE802.3af 25W MM 550m 850nm 10/100/1000M POE PSE Media Converter

    -10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
    -IEEE802.3at / IEEE802.3af PoE PSE compatible
    -Built-in AC/DC power supply
    -Over-current protection
    -choice of SC, LC, BiDi or other connectors for multimode and singlemode
    -DIP switch to set different configurations
    -LFP (Link Fault Pass-through) support


    FR220 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily.

    Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).


    The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features.


    Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal.


    In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.


    Data Rates
    * 10/100/1000Mbps (IEEE802.3U IEEE802.3z 1000Base-Tx)
    * 1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)

    Input Power


    * Input voltage                                ---100 VAC to 240 VAC
    * Input frequency                           --- 47 Hz to 63 Hz
    POE Output * Pin Assignment and Polarity
       •  For IEEE802.3af standard
       •  For IEEE802.3at standard (30Watts maximum)
       •  For IEEE802.3at standard (50Watts maximum)
                                    ---1/2/4/5 (V+),3/6/7/8 (V-)
    *  Output Power     ---please refer to ordering information
    *  Efficiency             ---75% min
    *  Short circuit protection            ---auto recovery
    *  Over current protection           ---auto recovery



    * Operating temperature                  ---0C to 50C
    * Cooling                                              ---free air convection
    * Storage temperature                     ---20C to  +85C
    * Operating Humidity             ---90% max, non-condensing



    * Case Material                                   ---Iron
    * Case Color                                        ---Black
    * Net Weight                                       ---560g approx. / unit
    * Dimensions     ---110(W) x 40(H) x 140(L) (mm)
     Do not include transceiver length
    Connectors * AC Inlet                                            ---IEC-J-4
    * LAN                                                   ---Shielded RJ-45
    * Fiber                                      ---see ordering information
    Warranty *1 year hardware warranty
    *Specifications subject to change without notice


    Ordering Info:

    Part Number Standard Output Voltage Output Current Output Power Remark
    FR220S-XX-XXX IEEE 802.3af 48V 0.35A max 15.4W max default
    FR220-XX-XXX IEEE 802.3af 48V 0.54A max 25W max default
    FR220T-XX-XXX IEEE 802.3at 52V 0.60A max 30W max default
    FR220H-XX-XXX IEEE 802.3at 52V 1.00A max 50W max default
    FR220B-XX-XXX Non-standard 48V 0.60A max 30W max optional
    FR220C-XX-XXX Non-standard 24V 1.20A max 30W max optional
    *XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us
    Suffix Description Suffix Description
    SC-M005 SC, MM, 550m , 850nm LC-S20 LC/SFP, SM, 20km , 1310nm
    SC-S10 SC, SM, 10km , 1310nm LC-S40 LC/SFP, SM, 40km , 1310nm
    SC-S20 SC, SM, 20km , 1310nm BS3-S10 BiDi SC, SM, 10km , 1310/1550nm
    SC-S40 SC, SM, 40km , 1310nm BS3-S20 BiDi SC, SM, 20km , 1310/1550nm
    LC-M005 LC/SFP, MM, 550m , 850nm BS5-S10 BiDi SC, SM, 10km , 1550/1310nm
    LC-S10 LC/SFP, SM, 10km , 1310nm BS5-S20 BiDi SC, SM, 20km , 1550/1310nm
