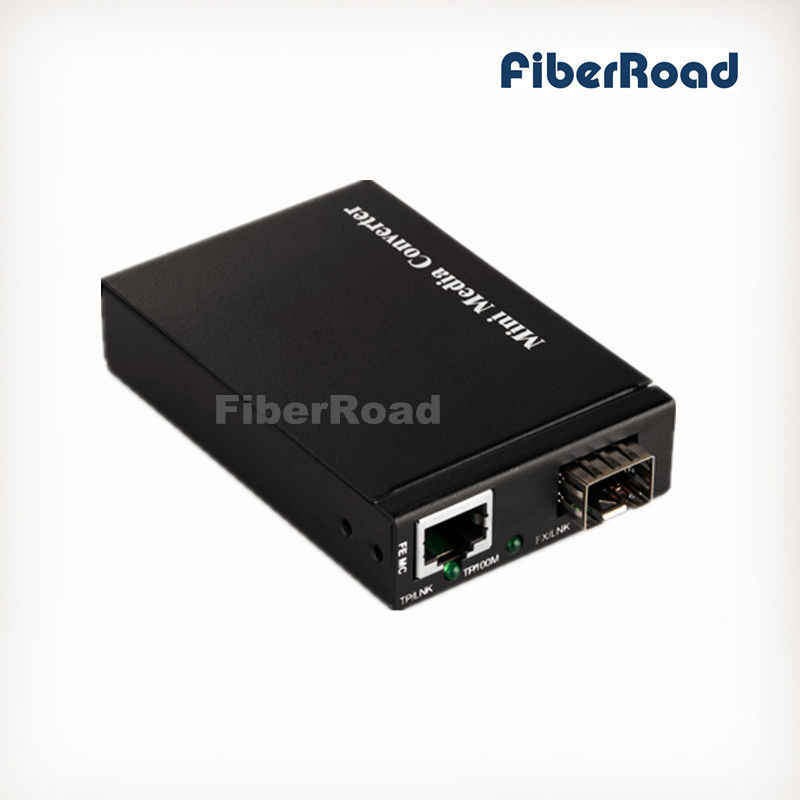

10/100Base-TX to 100Base-FX SFP Mini Media Converter

10/100Base-TX to 100Base-FX SFP Mini Media Converter

10/100Base-TX to 100Base-FX SFP Mini Media Converter

Product Details:

Place of Origin: China
Brand Name: FiberRoad
Certification: CE,ROHS
Model Number: FR200-201-SFP-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD0.1
Packaging Details: Neutrial packing
Delivery Time: 3-7 working days
Payment Terms: T/T
Supply Ability: 10000PCS/MONTH
Contact Now
Detailed Product Description

10/100Base-TX to 100Base-FX Mini Media Converter SFP

Key Features

● 10/100Base-TX UTP to 100Base-FX fiber media convertion

● Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards

● Choice of SC, BiDi or other connectors for multimode and singlemode

● DIP switch to set different configurations

● LFP (Link Fault Pass-through) support

● Compact package size



The mini 10/100Base-TX to 100Base-FX Media Converter is fully compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, link fault pass through function (LFP), etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations, the user can set the different operating mode (UTP port speed 10M or100M, full or half duplex mode, pass through mode, LFP enable or disable).



Data Rates:

.10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)
.100Mbps (100Base-FX)

Input Power Requirements:

. Input voltage :DC 5-12V or AC 6-12V 50/60Hz (optional)
. Power Consume: 3 Watts maximum

Environmental Conditions:

. Operating temperature  : 0°C to 40°C
. Cooling :  free air convection
. Storage temperature :  -20°C to  +85°C
. Operating Humidity : 90% max, non-condensing

Mechanical Specifications

. Case Material : Iron
. Case Color : Black
. Net Weight : 150g approx. / unit
. Dimensions: 60 (W) x 20 (H) x 90 (L) (mm)
 Do not include transceiver length


. 2 years hardware warranty

Note: Specifications subject to change without notice


Ordering information


*XXXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.

Fiber transmission distance

TX wave length

Fiber interface

2: 2KM

3: 1310nm

S: Single-mod

20: 20KM

5: 1550nm

M: Multi-mode

40: 40KM

8: 850nm

B: Single-mode bi-directional

 SFP: SFP type (do not include SFP transceiver module


If any questions, please find Ms JOJO
