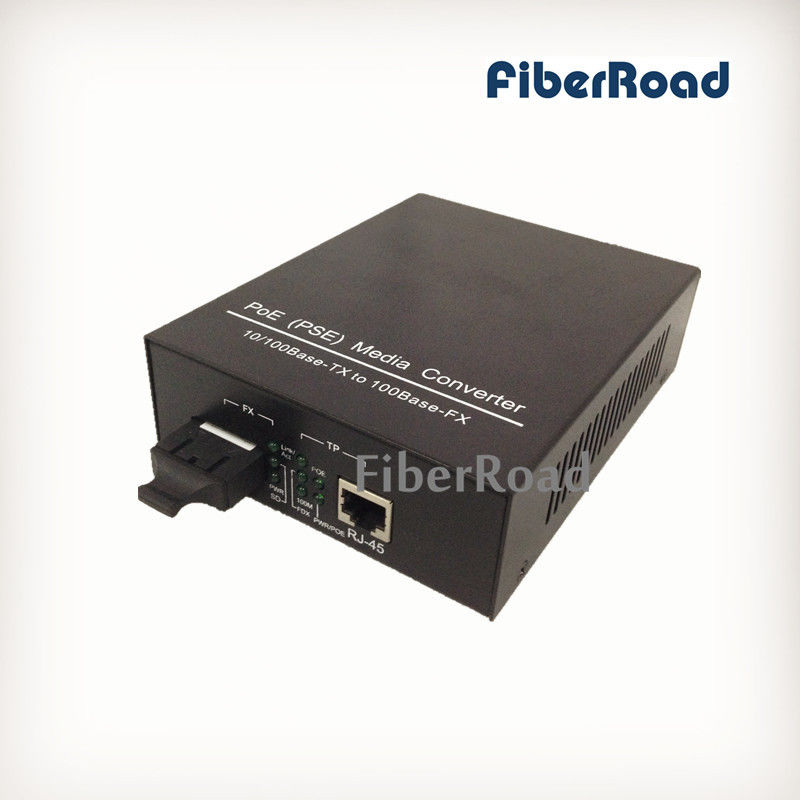

IEEE802.3at 30W SM 20km 1310nm SC 10/100M POE PSE Media Converter
Features
*10/100Base-TX UTP to 100Base-FX fiber media convertion
*IEEE802.3at / IEEE802.3af PoE PSE compatible
*Built-in AC/DC power supply
*Over-current protection
*choice of SC, BiDi or other connectors for multimode and singlemode
*DIP switch to set different configurations
*LFP (Link Fault Pass-through) support
FR200 series is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily.
Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5/CAT5e UTP cable (cable length up to 100meters / 330feets).
The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features.
Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal.
In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Data Rates |
* 10/100 Mbps (802.3 10Base-T/802.3u 100Base-T) * 100Mbps (100Base-FX) |
||||||||||||||
Input Power Requirements |
* Input voltage ---100 VAC to 240 VAC * Input frequency --- 47 Hz to 63 Hz |
||||||||||||||
POE Output |
* Pin Assignment and Polarity • For IEEE802.3af standard ---4/5 (V+),7/8 (V-) (default) ---or 1/2(V+),3/6(V-) (optional) • For IEEE802.3at standard (30Watts maximum) ---4/5 (V+),7/8 (V-) (default) ---or 1/2(V+),3/6(V-) (optional) • For IEEE802.3at standard (50Watts maximum) ---1/2/4/5 (V+),3/6/7/8 (V-) (default) * Output Power ---please refer to ordering information * Efficiency ---75% min * Short circuit protection ---auto recovery * Over current protection ---auto recovery |
||||||||||||||
Environmental Conditions |
* Operating temperature ---0C to 50C * Cooling ---free air convection * Storage temperature ---20C to +85C * Operating Humidity ---90% max, non-condensing |
||||||||||||||
Mechanical Specifications |
* Case Material ---Iron * Case Color ---Black * Net Weight ---550g approx. / unit * Dimensions ---110(W) x 40(H) x 140(L) (mm) Do not include transceiver length |
||||||||||||||
Connectors |
* AC Inlet ---IEC-J-4 * LAN ---Shielded RJ-45 * Fiber ---see ordering information |
||||||||||||||
Warranty |
*1 year hardware warranty *Specifications subject to change without notice |
||||||||||||||
Ordering Information: | |||||||||||||||||
Part Number | Standard | Output Voltage | Output Current | Output Power | Remark | ||||||||||||
FR200S-XX-XXX | IEEE 802.3af | 48V | 0.35A max | 15.4W max | default | ||||||||||||
FR200-XX-XXX | IEEE 802.3af | 48V | 0.54A max | 25W max | default | ||||||||||||
FR200T-XX-XXX | IEEE 802.3at | 52V | 0.60A max | 30W max | default | ||||||||||||
FR200H-XX-XXX | IEEE 802.3at | 52V | 1.00A max | 50W max | optional | ||||||||||||
FR200B-XX-XXX | Non-standard | 48V | 0.60A max | 30W max | optional | ||||||||||||
FR200C-XX-XXX | Non-standard | 24V | 1.20A max | 30W max | optional | ||||||||||||
*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us | |||||||||||||||||
Suffix | Description | Suffix | Description | ||||||||||||||
SC-M02 | SC, MM, 2km / 1300nm | BS3-S20 | BiDi SC, SM, 20km , 1310/1550nm | ||||||||||||||
SC-S20 | SC, SM, 20km , 1310nm | BS3-S40 | BiDi SC, SM, 40km , 1310/1550nm | ||||||||||||||
SC-S40 | SC, SM, 40km , 1310nm | BS5-S20 | BiDi SC, SM, 20km , 1550/1310nm | ||||||||||||||
SC-S60 | SC, SM, 60km , 1310nm | BS5-S40 | BiDi SC, SM, 40km , 1550/1310nm | ||||||||||||||
SC-S80 | SC, SM, 80km , 1310nm |
