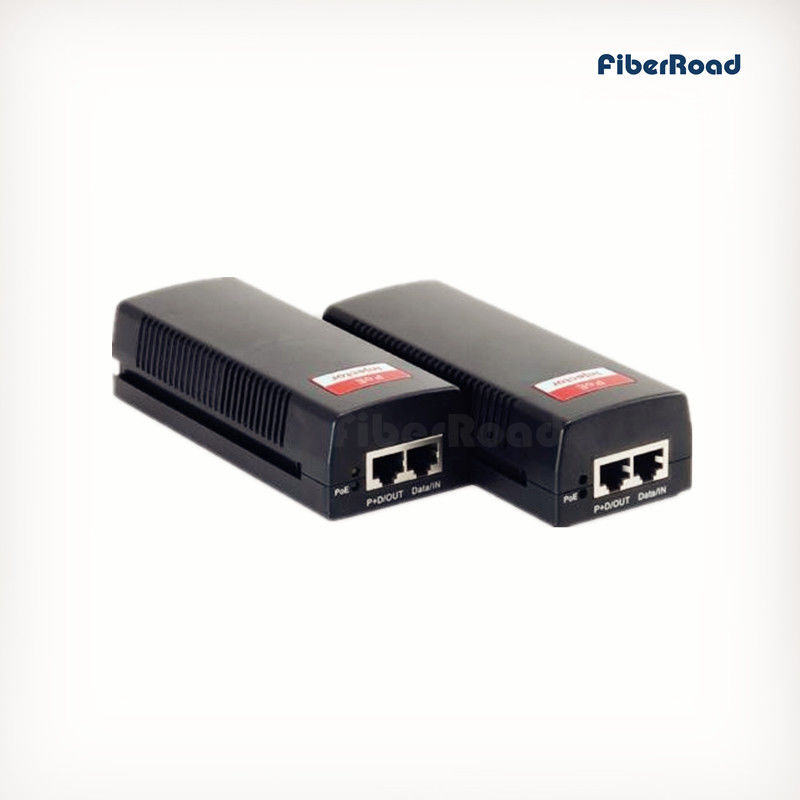

60 Watt Power Over Ethernet POE Injector Gigabit Ethernet Switch

60 Watt Power Over Ethernet POE Injector Gigabit Ethernet Switch

    • 60 Watt Power Over Ethernet POE Injector Gigabit Ethernet Switch
    • 60 Watt Power Over Ethernet POE Injector Gigabit Ethernet Switch
  • 60 Watt Power Over Ethernet POE Injector Gigabit Ethernet Switch

    Product Details:

    Place of Origin: China
    Brand Name: Fiberroad
    Certification: CE
    Model Number: FR-POE312-T6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Please send inquiry to jojo@fiberroad.com.cn
    Packaging Details: White box
    Delivery Time: 5-7days
    Payment Terms: T/T in advance
    Supply Ability: 1000PCS/MONTH
    Contact Now
    Detailed Product Description

    Detailed Product Description
    Output Power Voltage: 54-57Vdc User Port Power: 60W Max
    AC Input Voltage: 100 To 240 Vac AC Frequency: 50 To 60 Hz
    Dimensions: 180 Mm X 70 Mm X 37 Mm Pass Through Data Rates: 10/100/1000 Mbps



    60 Watt Power Over Switch / POE Injector Gigabit Ethernet Switch





    FR-POE312-T6 is a single port, high-power solution for remote,powering of current and emerging high power applications.Generating a maximum of 60W. Power for a new range of applications including pan-tilt-zoom,(PTZ) cameras, video-phones and thinclients. It complies to,IEEE 802.3af/at PoE standard parameters, while doubling the,available power. It can power both existing 10/100Base-T,network devices and such,emerging wireless gigabit devices as,Wi-MAX and remote distance wireless IEEE 802.11n access,points.





    Key Features



    • Up to 60W of Power on 4-pairs
    • IEEE 802.3af and 802.3at Compliant--With Higher PowerCompatible With All IEEE pre 802.3at, 802.3af and Legacy Powered Devices
    • Safe: Low Power Devices Receive Only the Power They Need, 2-pair PDs receive power on 2-pairs
    • Safe and Reliable Power over Ethernet
    • Automatic Detection and Protection of Non tandard Ethernet Terminals
    • Supports 10/100/1000BaseT applications
    • Compact Design Fits Easily in WLAN Access Point

    Specification



    No. of Ports

    1

    Pass Through Data Rates

    10/100/1000 Mbps

    PoE Output :

    Data Pairs

    1/2 (–) and 3/6 (+)

    Spare Pairs

    7/8 (–) and 4/5 (+)

    Output Power Voltage

    54-57Vdc

    User Port Power

    60W Max

    Input Power Requirements :

    AC Input Voltage

    100 to 240 Vac

    AC Input Current

    1.2A @ 100-240 Vac

    AC Frequency

    50 to 60 Hz

    Dimensions

    180 mm x 70 mm x 37 mm

    Weight

    450g

    Indicators

    System Indicator: AC Power (Green)

    Channel Power

    Green and Orange

    Connectors

    Shielded RJ-45, EIA 568A and 568B

    Environmental Conditions

    Operating Ambient Temperature

    14° to 113°F (-10° to 45°C) @60W

    14° to 131°F (-10° to 55°C) @30W

    Operating Humidity

    Maximum 90%, Non-condensing

    Storage Temperature

    –4° to 158°F (–20° to 70°C)

    Operating Altitude

    –1000 to 10,000 ft. (–304.8 to 3048 m)

    Reliability MTBF

    100,000 hrs. @25℃

    Warranty

    1-year

    Regulatory

    IEEE 802.3af (PoE), Pre IEEE 802.3at

    (including 2-event), RoHS Compliant, CE





    Ordering information



    P/N

    Description

    -

    X

    X

    FR-POE312-T6

    10/100/1000M POE Power Injector



    T:IEEE802.3at

    6: 60W
