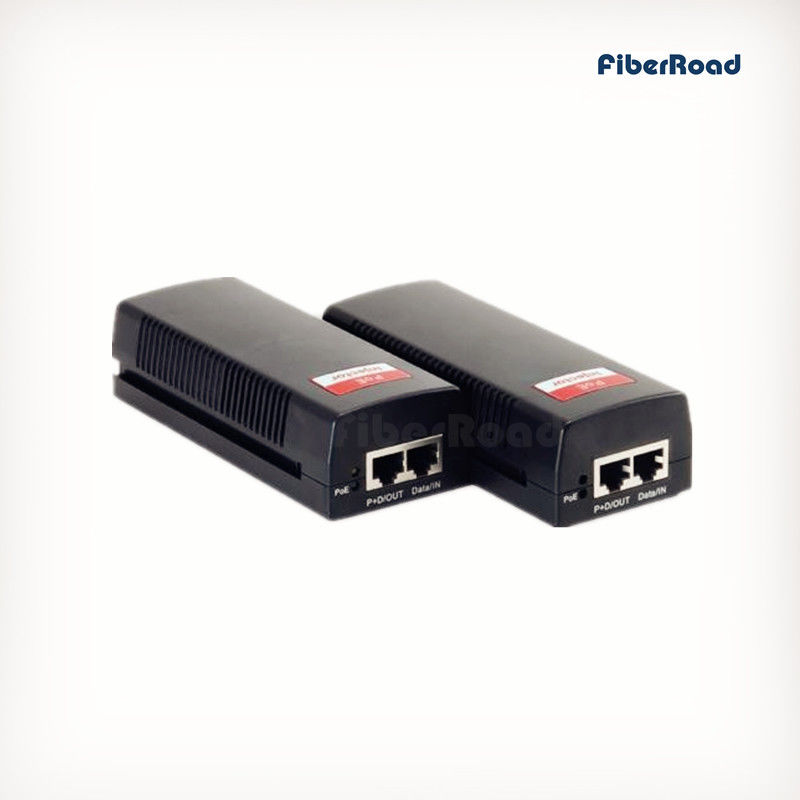

100M POE Injector AC Single Port AC Voltage IEEE802.3af for WLAN access

100M POE Injector AC Single Port AC Voltage IEEE802.3af for WLAN access

100M POE Injector AC Single Port AC Voltage IEEE802.3af for WLAN access

Product Details:

Place of Origin: China
Brand Name: Fiberroad
Certification: CE
Model Number: FR-POE311-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Please send inquiry to jojo@fiberroad.com.cn
Packaging Details: White box
Delivery Time: 5-7days
Payment Terms: T/T in advance
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description

Detailed Product Description
Input Power Voltage: 100 ~ 240V AC User Port Power: 30 Watts
Description: IEEE 802.3at AC Frequency: 50 ~ 60HZ
No. Of Ports: 1 Port Pass Through Data Rates: 10/100M



10M / 100M POE Injector AC Single Port to AC Voltage for WLAN access





POE Injector is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, Injector enables remote power for a new range of applications including 802.11Access Points, pan-tilt-zoom(PTZ) cameras and video-phones.
For our this POE Injector can power both existing 10/100Base-T network devices and emerging wireless 100Base-T devices such as Wi-MAX and wireless IEEE802.11n access points.



Key Features



  • Up to 30W of Power on 2-pairs
  • Safe: Low power devices receive only the power they need
  • Safe and reliable power to WLAN access points
  • Automatic detection and protection of Non-standard ethernet terminals
  • Ethernet terminals
  • Supports 10/100Base-T applications
  • Compact design fits easily in WLAN access
  • Point installations

Specification



Specifications PoE Injector Specifications

Description

IEEE 802.3at

No. of Ports

1 Port

Pass Through Data Rates

10/100M

User Port Power

30 Watts

Power over Ethernet Output Pin Assignment and Polarity

1/2(+) 3/6(-)

Input Power Voltage

100 ~ 240V AC

Requirements AC Input Current

0.8A@100 ~ 240V AC

Output Power Voltage

52V DC

AC Frequency

50 ~ 60HZ

System Indicator

AC Power is Green

User Indicator

Channel Power

Connectors

Shielded RJ-45, EIA 568A and 568B

Dimensions

145 (L) x60 (W) x 40 (H) mm

Weight

350g

Terminal Rating

27 BTU/Hr (@240VAC)

Operating Ambient Temperature

-10 to 45℃

Reliability MTBF

523919.5469 (hrs)

Safety Approvals

CE





Ordering information



P/N

Description

-

X

X

FR-POE311-XX

10/100M POE Power Injector



F:IEEE802.3af

T:IEEE802.3at

N:Non-standard

1:15.4W

3: 30W

5:50W







100M POE Injector AC Single Port AC Voltage IEEE802.3af for WLAN access
