1-Port 10/100M Power Over Ethernet Injector support PoE Midspans

1-Port 10/100M Power Over Ethernet Injector support PoE Midspans

1-Port 10/100M Power Over Ethernet Injector support PoE Midspans

Product Details:

Place of Origin: China
Brand Name: Fiberroad
Certification: CE
Model Number: FR-POE801-af

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Please send inquiry to jojo@fiberroad.com.cn
Packaging Details: White box
Delivery Time: 5-7days
Payment Terms: T/T in advance
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description

Detailed Product Description
Product Name: POE Injector AC Input: 110V~220V
PoE Standards: IEEE 802.3af Port Description: 2X RJ45, 1X AC Input
Network Medium: 100BASE-TX Working Rate: 10/100Mbps





1-Port  10 / 100M POE  Injector support PoE Solutions, PoE Midspans, Adapters, Power Over Ethernet. Advanced



Product Description:

      PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices.  There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output. These single-port PoE injectors supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method.

     These single-port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.



Features:

◆Supply power to HD network surveillance cameras with Cat5e (PoE)

◆2x 10/100M RJ45 ports; 1x AC input port

◆ AC input: 110V~220V

◆ Compatible with IEEE 802.3af standard

◆Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)
◆Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

◆No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall.



Technical Specification:

Product Name

10/100M Single Port PoE Injector 15.4W

Product Model

FR-POE801-af

Port Description

2x copper cable RJ45 ports, 1x AC input port

PoE Power Supply

mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized)

Network Medium

100BASE-TX: 5Cat and more UTP (≤100 meters)

Thermal Protection

>100°C

Performance

Working rate:10/100Mbps working rate

Network port protection: meet with IEC61000-4-2(ESD)

MTBF: 190,000 hours(about 21 years)

PoE Standards

IEEE 802.3af

LEDs Indicator

PoE working status

Power

Total power: 16W

PoE port power: 15.4W

AC input voltage: 110~220V

Dimensions/Weight

LxWxH: 145x10.48x15.85(mm), 0.154kg

Working Environment

Operating Temperature: 0°~ 55°C , Storage Temperature: -20°~ 75°C

Working Humidity: 10%~90%, non-condensing

Storage Humidity: 10%~95%, non-condensing

Warranty

CE mark,commercial,FCC Part 15 Class B,RoHS

1 year warranty

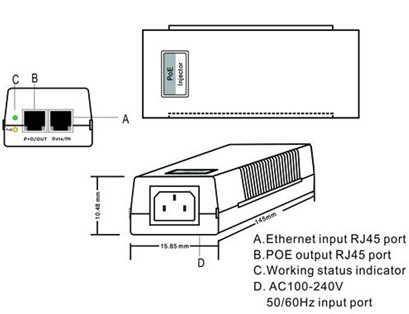

Size Display:

1-Port  10 / 100M Power Over Ethernet Injector support PoE Midspans , POE Adapters

Packing Lists:

Package List

10/100M Single Port PoE Injector AC Input 15.4W

User Guide

Power Cable

Warranty Card

















Ordering Information:

Model

Specs (AC Input 110~220V)

Dimension/ Weight

FR-POE801-af

10/100M PoE injector, 2x RJ45 ports, IEEE802.3af, 15.4W

150x56x45mm, 0.154kg

FR-POE801-at

10/100M PoE injector, 2x RJ45 ports, IEEE802.3at, 25.5W

150x56x45mm, 0.154kg

FR-POE801-G-af

10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3af, 15.4W

150x56x45mm, 0.154kg

FR-POE801-G-at

10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at, 25.5W

150x56x45mm, 0.154kg

Ordering Notes: Default mid-span: 4/5, 7/8 data line pair; end-span: 1/2, 3/6 spare line pair (can be customized)





1-Port  10 / 100M Power Over Ethernet Injector support PoE Midspans , POE Adapters





If any questions, please find Ms JOJO
